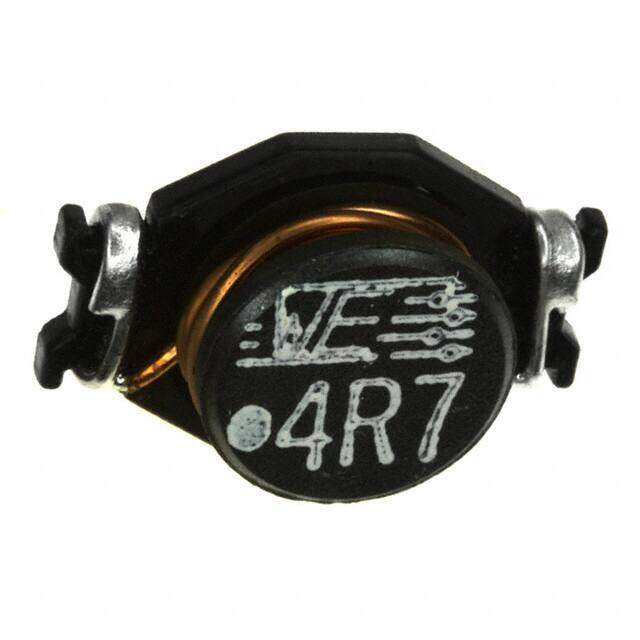

74457047 image
Favorite
74457047 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD4 Nonstandard 0.866Lx0.591W 22.00mmx15.00mm 4.7muH
PDF
/
Buying Options
Total Price: USD $18.73
Unit Price: USD $18.7283
≥1 USD $18.7283
≥10 USD $15.3672
≥100 USD $14.8865
≥500 USD $14.40675
≥1000 USD $13.92605
Inventory: 1505
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 15.0114mm
Length 21.9964mm
Height Seated (Max) 0.307 7.80mm
Height 7mm

Technical

RMS Current (Irms) 8.5A
Inductance Tolerance 20%
Current - Saturation 15A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 33MHz
Max DC Current 8.5A
DC Resistance (DCR) 11mOhm Max
Test Frequency 100kHz
Inductance 4.7μH
Current Rating 8.5A
Depth 15mm
Shielding Unshielded
Current Rating (Amps) 8.5A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 8.8mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.866Lx0.591W 22.00mmx15.00mm
Series WE-PD4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
