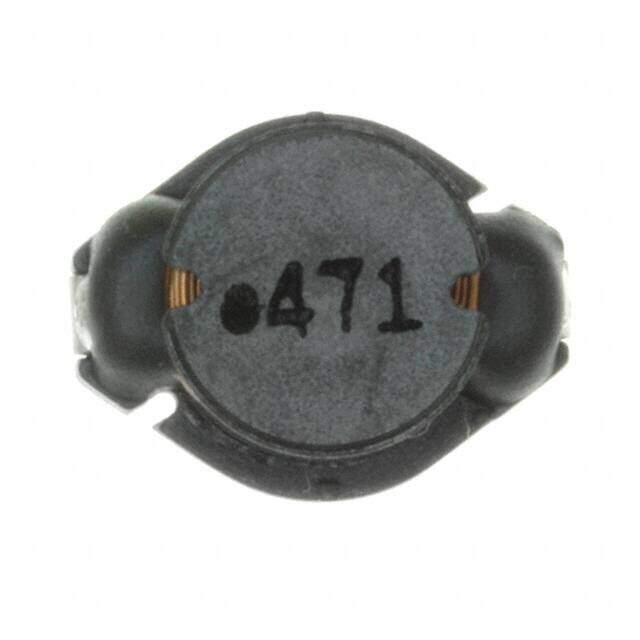

74456247
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD4 Nonstandard 0.500Lx0.394W 12.70mmx10.00mm 470muH
PDF
/
Buying Options
Total Price: USD $1.65
Unit Price: USD $1.651359
≥1 USD $1.651359
≥10 USD $1.557889
≥100 USD $1.469698
≥500 USD $1.38651
≥1000 USD $1.308033
Inventory: 1200
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD4
Size / Dimension 0.500Lx0.394W 12.70mmx10.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Resistance 1.315Ohm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 600mA
Shielding Unshielded
Depth 10mm
Current Rating 600mA
Inductance 470μH
Test Frequency 100kHz
DC Resistance (DCR) 1.7Ohm Max
Max DC Current 600mA
Frequency - Self Resonant 3.1MHz
Inductance Frequency - Test 100kHz
Current - Saturation 650mA
Inductance Tolerance 10%
RMS Current (Irms) 600mA
Series Resistance 1.315Ohm
Dimensions
Height 5mm
Height Seated (Max) 0.209 5.30mm
Length 12.7mm
Width 10.0076mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
