74456168
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description

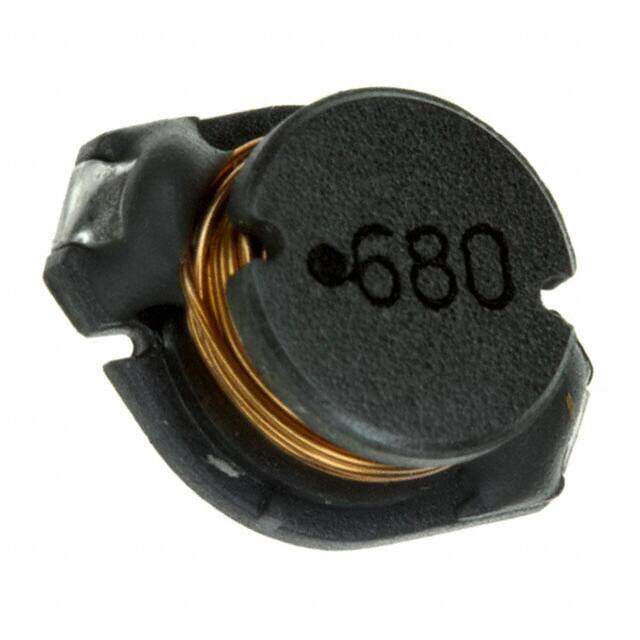

FIXED IND 68UH 1.6A 240 MOHM SMD
PDF
/
Buying Options
Total Price: USD $0.54
Unit Price: USD $0.5377
≥1 USD $0.5377
≥10 USD $0.4408
≥100 USD $0.4275
≥500 USD $0.41325
≥1000 USD $0.39995
Inventory: 1245
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD4
Size / Dimension 0.500Lx0.394W 12.70mmx10.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Resistance 187mOhm
Current Rating (Amps) 1.6A
Shielding Unshielded
Inductance 68μH
DC Resistance (DCR) 240mOhm Max
Frequency - Self Resonant 8.5MHz
Inductance Frequency - Test 100kHz
Current - Saturation 1.7A
Inductance Tolerance 10%
Dimensions
Height Seated (Max) 0.209 5.30mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
