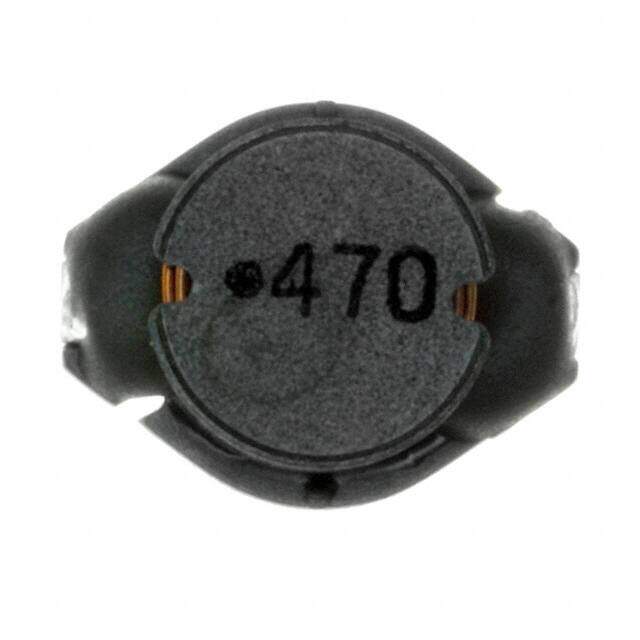

74456147
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 47UH 1.8A 190 MOHM SMD
PDF
/
Buying Options
Total Price: USD $2.41
Unit Price: USD $2.41395
≥1 USD $2.41395
≥10 USD $1.98075
≥100 USD $1.919
≥500 USD $1.85725
≥1000 USD $1.7955
Inventory: 1139
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD4
Size / Dimension 0.500Lx0.394W 12.70mmx10.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Resistance 142.1mOhm
Current Rating (Amps) 1.8A
Shielding Unshielded
Inductance 47μH
DC Resistance (DCR) 190mOhm Max
Frequency - Self Resonant 10MHz
Inductance Frequency - Test 100kHz
Current - Saturation 2.14A
Inductance Tolerance 10%
Dimensions
Height Seated (Max) 0.209 5.30mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
