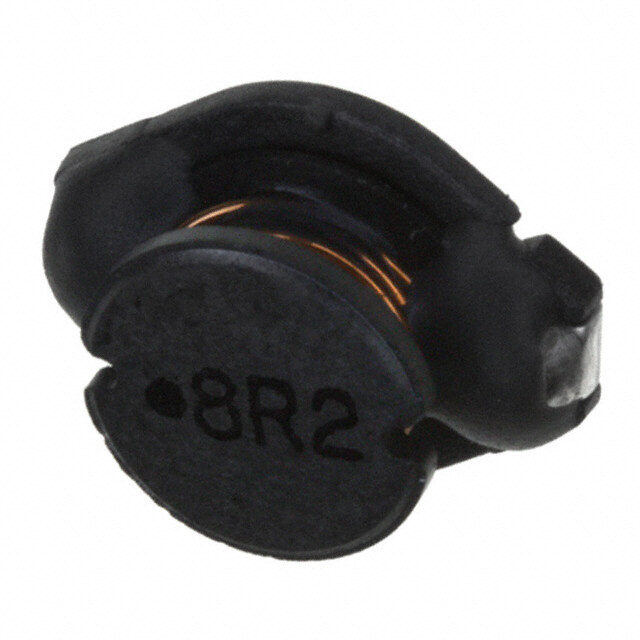

74456082
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD4 Nonstandard 0.500Lx0.394W 12.70mmx10.00mm 8.2muH
PDF
/
Inventory: 7761
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD4
Size / Dimension 0.500Lx0.394W 12.70mmx10.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 3.2A
Shielding Unshielded
Current Rating 3.2A
Inductance 8.2μH
Test Frequency 100kHz
DC Resistance (DCR) 40mOhm Max
Frequency - Self Resonant 26MHz
Inductance Frequency - Test 100kHz
Current - Saturation 4.2A
Dimensions
Height Seated (Max) 0.209 5.30mm
Length 12.7mm
Width 10.0076mm
Compliance
RoHS Status ROHS3 Compliant
