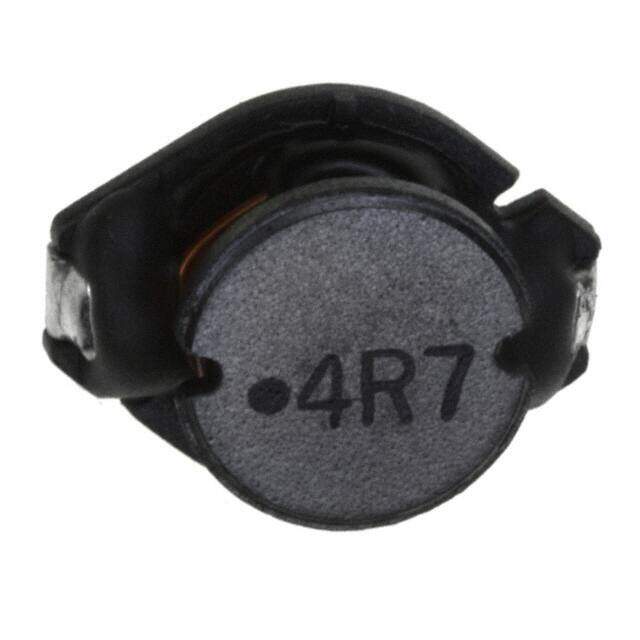

74456047
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD4 Nonstandard 0.500Lx0.394W 12.70mmx10.00mm 4.7muH
PDF
/
Buying Options
Total Price: USD $14.46
Unit Price: USD $14.4609
≥1 USD $14.4609
≥10 USD $11.8655
≥100 USD $11.49405
≥500 USD $11.12355
≥1000 USD $10.75305
Inventory: 7203
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 10.0076mm
Length 12.7mm
Height Seated (Max) 0.209 5.30mm
Height 5mm
Technical
Series Resistance 14.6mOhm
RMS Current (Irms) 5A
Inductance Tolerance 20%
Current - Saturation 6A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 38MHz
Max DC Current 5A
DC Resistance (DCR) 19mOhm Max
Test Frequency 100kHz
Inductance 4.7μH
Current Rating 5A
Depth 10mm
Shielding Unshielded
Current Rating (Amps) 5A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 14.6mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.500Lx0.394W 12.70mmx10.00mm
Series WE-PD4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
