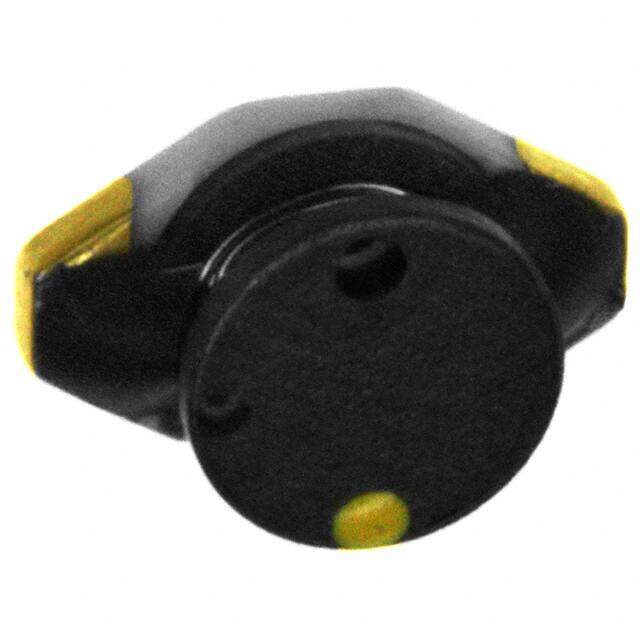

74455147 image
Favorite
74455147 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD4 Nonstandard 0.260Lx0.175W 6.60mmx4.45mm 47muH
PDF
/
Buying Options
Total Price: USD $15.96
Unit Price: USD $15.9562
≥1 USD $15.9562
≥10 USD $13.0929
≥100 USD $12.68345
≥500 USD $12.274
≥1000 USD $11.8655
Inventory: 1228
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 4.445mm
Length 6.604mm
Height Seated (Max) 0.115 2.92mm
Height 2.92mm

Technical

Series Resistance 556mOhm
RMS Current (Irms) 500mA
Inductance Tolerance 20%
Current - Saturation 500mA
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 12MHz
Max DC Current 500mA
DC Resistance (DCR) 640mOhm Max
Test Frequency 100kHz
Inductance 47μH
Current Rating 500mA
Depth 4.45mm
Shielding Unshielded
Current Rating (Amps) 500mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Resistance 556mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.260Lx0.175W 6.60mmx4.45mm
Series WE-PD4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~100°C

Physical

Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
