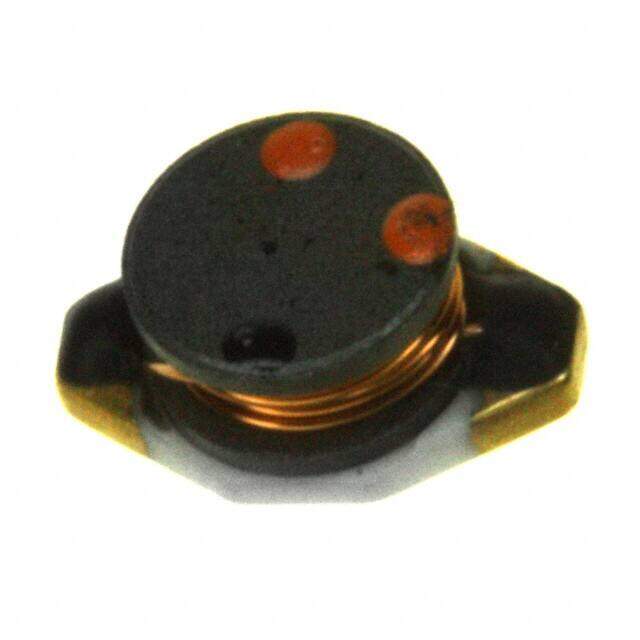

74455133 image
Favorite
74455133 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD4 Nonstandard 0.260Lx0.175W 6.60mmx4.45mm 33muH
PDF
/
Buying Options
Total Price: USD $0.48
Unit Price: USD $0.4845
≥1 USD $0.4845
≥10 USD $0.3971
≥100 USD $0.38475
≥500 USD $0.3724
≥1000 USD $0.36005
Inventory: 1888
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite

Technical

Operating Temperature -40°C~100°C
Packaging Tape & Reel (TR)
Series WE-PD4
Size / Dimension 0.260Lx0.175W 6.60mmx4.45mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Current Rating (Amps) 600mA
Shielding Unshielded
Depth 4.45mm
Current Rating 600mA
Inductance 33μH
Test Frequency 100kHz
DC Resistance (DCR) 510mOhm Max
Max DC Current 600mA
Frequency - Self Resonant 13MHz
Inductance Frequency - Test 100kHz
Current - Saturation 580mA

Dimensions

Height 2.921mm
Height Seated (Max) 0.115 2.92mm
Length 6.604mm
Width 4.445mm

Compliance

RoHS Status ROHS3 Compliant
