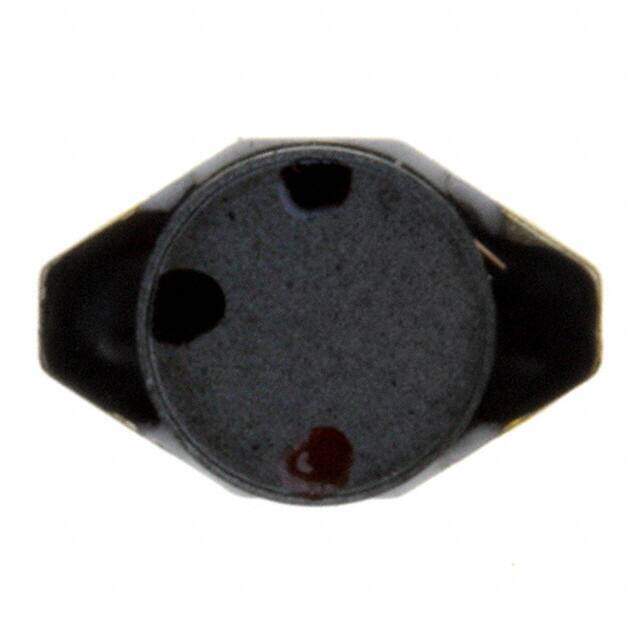

7445510
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD4 Nonstandard 0.260Lx0.175W 6.60mmx4.45mm 10muH
PDF
/
Buying Options
Total Price: USD $0.71
Unit Price: USD $0.71155
≥1 USD $0.71155
≥10 USD $0.58425
≥100 USD $0.5662
≥500 USD $0.54815
≥1000 USD $0.52915
Inventory: 7523
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~100°C
Packaging Tape & Reel (TR)
Series WE-PD4
Size / Dimension 0.260Lx0.175W 6.60mmx4.45mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Resistance 121mOhm
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.2A
Shielding Unshielded
Depth 4.45mm
Current Rating 1.2A
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 160mOhm Max
Max DC Current 1.2A
Frequency - Self Resonant 26MHz
Inductance Frequency - Test 100kHz
Current - Saturation 1.1A
Inductance Tolerance 20%
RMS Current (Irms) 1.2A
Series Resistance 121mOhm
Dimensions
Height 2.92mm
Height Seated (Max) 0.115 2.92mm
Length 6.604mm
Width 4.445mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
