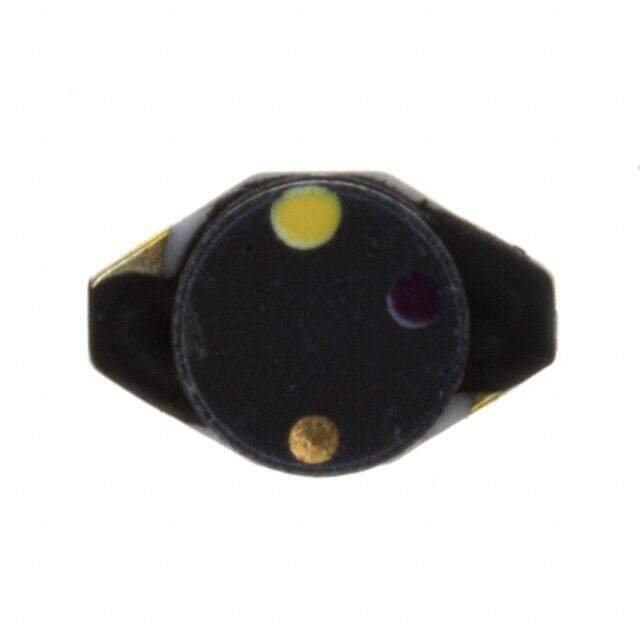

74455047 image
Favorite
74455047 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD4 Nonstandard 0.260Lx0.175W 6.60mmx4.45mm 4.7muH
PDF
/
Buying Options
Total Price: USD $17.06
Unit Price: USD $17.062
≥1 USD $17.062
≥10 USD $13.9992
≥100 USD $13.5622
≥500 USD $13.12425
≥1000 USD $12.68725
Inventory: 1217
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite

Technical

Operating Temperature -40°C~100°C
Packaging Tape & Reel (TR)
Series WE-PD4
Size / Dimension 0.260Lx0.175W 6.60mmx4.45mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Resistance 63mOhm
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.5A
Shielding Unshielded
Depth 4.45mm
Current Rating 1.5A
Inductance 4.7μH
Test Frequency 100kHz
DC Resistance (DCR) 90mOhm Max
Max DC Current 1.5A
Frequency - Self Resonant 37MHz
Inductance Frequency - Test 100kHz
Current - Saturation 1.5A
Inductance Tolerance 20%
RMS Current (Irms) 1.5A
Series Resistance 63mOhm

Dimensions

Height 2.92mm
Height Seated (Max) 0.115 2.92mm
Length 6.604mm
Width 4.445mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
