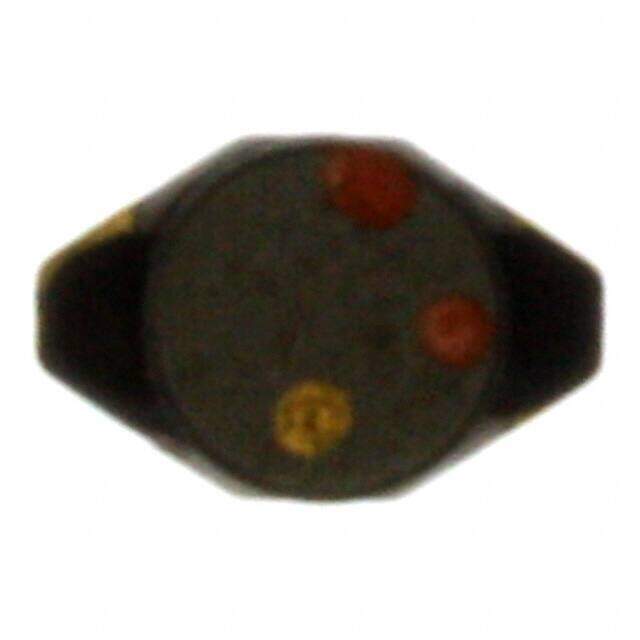

74455033 image
Favorite
74455033 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD4 Nonstandard 0.260Lx0.175W 6.60mmx4.45mm 3.3muH
PDF
/
Buying Options
Total Price: USD $20.68
Unit Price: USD $20.68245
≥1 USD $20.68245
≥10 USD $16.96985
≥100 USD $16.43975
≥500 USD $15.90965
≥1000 USD $15.37955
Inventory: 1158
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite

Technical

Operating Temperature -40°C~100°C
Packaging Tape & Reel (TR)
Series WE-PD4
Size / Dimension 0.260Lx0.175W 6.60mmx4.45mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 2A
Shielding Unshielded
Depth 4.45mm
Current Rating 2A
Inductance 3.3μH
Test Frequency 100kHz
DC Resistance (DCR) 80mOhm Max
Max DC Current 2A
Frequency - Self Resonant 39MHz
Inductance Frequency - Test 100kHz
Current - Saturation 2A

Dimensions

Height 2.92mm
Height Seated (Max) 0.115 2.92mm
Length 6.604mm
Width 4.445mm

Compliance

RoHS Status ROHS3 Compliant
