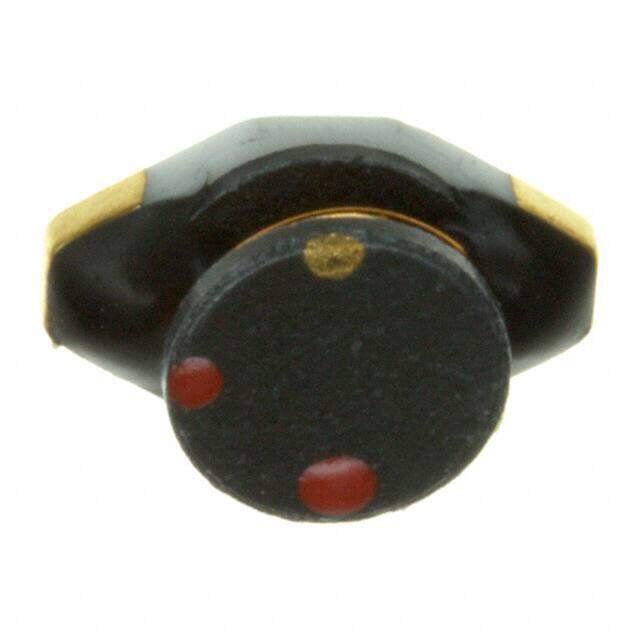

74455022
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD4 Nonstandard 0.260Lx0.175W 6.60mmx4.45mm 2.2muH
PDF
/
Buying Options
Total Price: USD $15.9
Unit Price: USD $15.89825
≥1 USD $15.89825
≥10 USD $13.0454
≥100 USD $12.63785
≥500 USD $12.22935
≥1000 USD $11.8218
Inventory: 1202
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 4.445mm
Length 6.604mm
Height Seated (Max) 0.115 2.92mm
Height 2.92mm
Technical
Series Resistance 28mOhm
RMS Current (Irms) 2.4A
Inductance Tolerance 20%
Current - Saturation 2.3A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 50MHz
Max DC Current 2.4A
DC Resistance (DCR) 70mOhm Max
Test Frequency 100kHz
Inductance 2.2μH
Current Rating 2.4A
Depth 4.45mm
Shielding Unshielded
Current Rating (Amps) 2.4A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Resistance 28mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.260Lx0.175W 6.60mmx4.45mm
Series WE-PD4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~100°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
