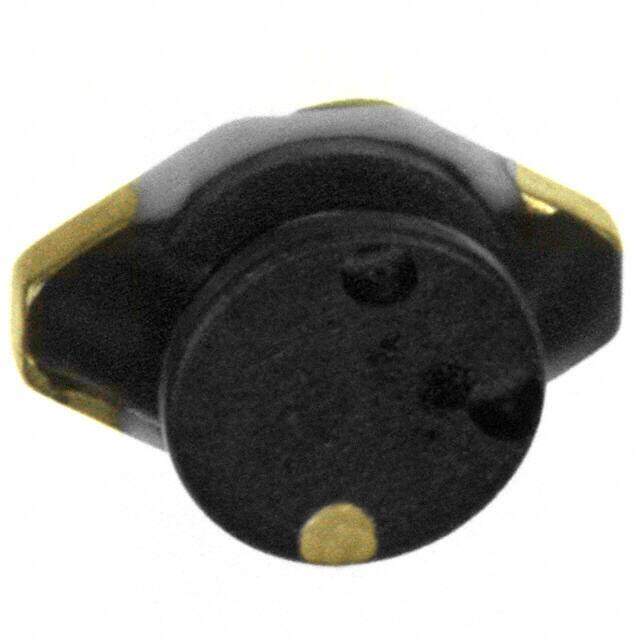

74455015
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD4 Nonstandard 0.260Lx0.175W 6.60mmx4.45mm 1.5muH
PDF
/
Buying Options
Total Price: USD $8.21
Unit Price: USD $8.21275
≥1 USD $8.21275
≥10 USD $6.7393
≥100 USD $6.5284
≥500 USD $6.3175
≥1000 USD $6.10755
Inventory: 1082
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 4.445mm
Length 6.604mm
Height Seated (Max) 0.115 2.92mm
Technical
Current - Saturation 2.6A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 62MHz
DC Resistance (DCR) 50mOhm Max
Test Frequency 100kHz
Inductance 1.5μH
Current Rating 2.8A
Shielding Unshielded
Current Rating (Amps) 2.8A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.260Lx0.175W 6.60mmx4.45mm
Series WE-PD4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~100°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
