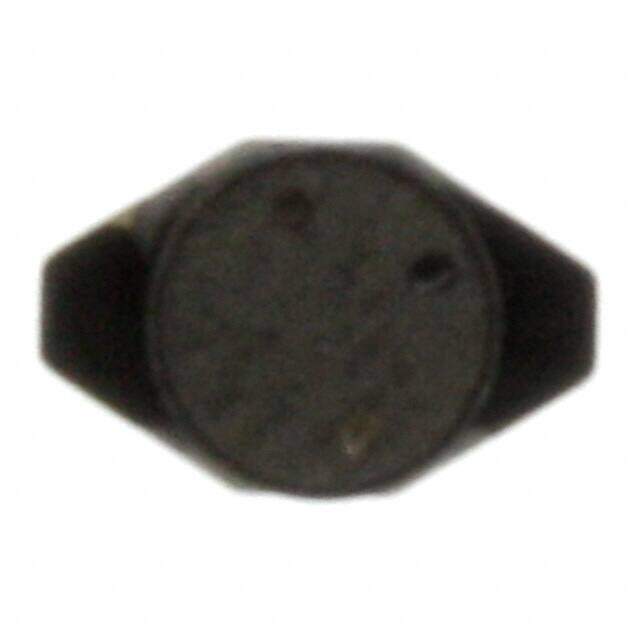

7445501
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD4 Nonstandard 0.260Lx0.175W 6.60mmx4.45mm 1muH
PDF
/
Buying Options
Total Price: USD $1.26
Unit Price: USD $1.25875
≥1 USD $1.25875
≥10 USD $1.03265
≥100 USD $1.00035
≥500 USD $0.96805
≥1000 USD $0.93575
Inventory: 1148
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 4.445mm
Length 6.604mm
Height Seated (Max) 0.115 2.92mm
Height 2.92mm
Technical
Series Resistance 17mOhm
RMS Current (Irms) 2.9A
Inductance Tolerance 20%
Current - Saturation 2.9A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 80MHz
Max DC Current 2.9A
DC Resistance (DCR) 50mOhm Max
Test Frequency 100kHz
Inductance 1μH
Current Rating 2.9A
Depth 4.45mm
Shielding Unshielded
Current Rating (Amps) 2.9A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Resistance 17mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.260Lx0.175W 6.60mmx4.45mm
Series WE-PD4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~100°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
