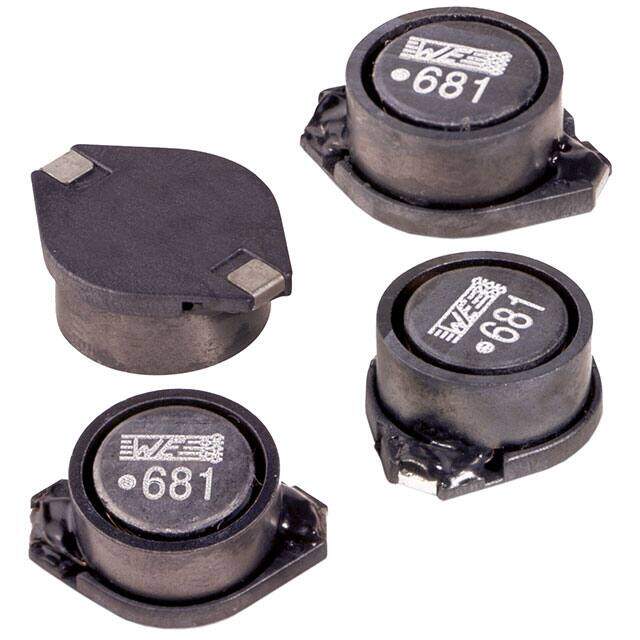

74454133
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD3 SMT SHIELDED POWER INDUCT
PDF
/
Buying Options
Total Price: USD $17.16
Unit Price: USD $17.15795
≥1 USD $17.15795
≥10 USD $14.07805
≥100 USD $13.6382
≥500 USD $13.19835
≥1000 USD $12.7585
Inventory: 1103
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 12.7mm
Height Seated (Max) 0.205 5.20mm
Height 4.9mm
Technical
Current - Saturation 1.8A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 12MHz
Max DC Current 1.2A
DC Resistance (DCR) 160mOhm Max
Inductance 33μH
Depth 10mm
Shielding Shielded
Current Rating (Amps) 1.2A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±15%
Size / Dimension 0.500Lx0.394W 12.70mmx10.00mm
Series WE-PD3
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
