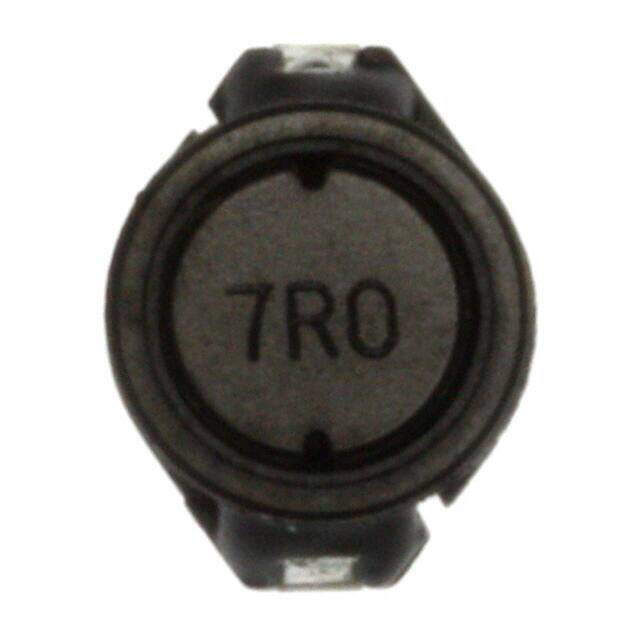

74454068 image
Favorite
74454068 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD3 Nonstandard 0.500Lx0.394W 12.70mmx10.00mm 7muH
PDF
/
Inventory: 7828
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 10.0076mm
Length 12.7mm
Height Seated (Max) 0.205 5.20mm
Height 4.8768mm

Technical

RMS Current (Irms) 2.2A
Inductance Tolerance 20%
Current - Saturation 4.1A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 33MHz
Max DC Current 2.2A
DC Resistance (DCR) 55mOhm Max
Test Frequency 100kHz
Inductance 7μH
Current Rating 2.2A
Shielding Shielded
Current Rating (Amps) 2.2A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 41mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.500Lx0.394W 12.70mmx10.00mm
Series WE-PD3
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 14 Weeks
