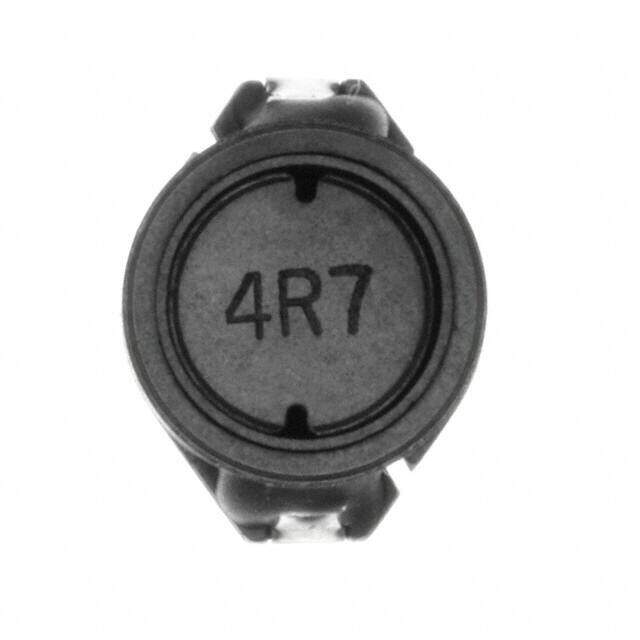

7445404 image
Favorite
7445404 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD3 Nonstandard 0.500Lx0.394W 12.70mmx10.00mm 4.7muH
PDF
/
Buying Options
Total Price: USD $2.37
Unit Price: USD $2.370741
≥1 USD $2.370741
≥10 USD $2.236544
≥100 USD $2.109955
≥500 USD $1.990517
≥1000 USD $1.877848
Inventory: 1134
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD3
Size / Dimension 0.500Lx0.394W 12.70mmx10.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Resistance 34mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 2.7A
Shielding Shielded
Depth 10mm
Current Rating 2.7A
Inductance 4.7μH
Test Frequency 100kHz
DC Resistance (DCR) 40mOhm Max
Max DC Current 2.7A
Frequency - Self Resonant 48MHz
Inductance Frequency - Test 100kHz
Current - Saturation 4.7A
Inductance Tolerance 20%
RMS Current (Irms) 2.7A
Series Resistance 34mOhm

Dimensions

Height 4.9mm
Height Seated (Max) 0.205 5.20mm
Length 12.7mm
Width 10.0076mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
