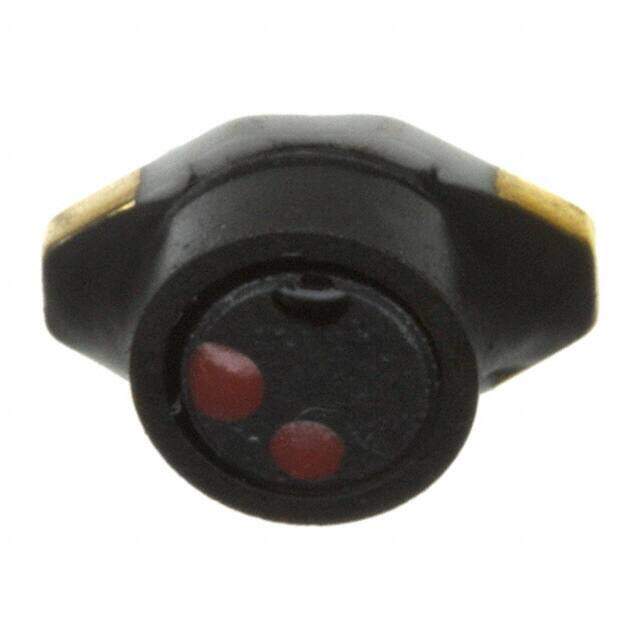

74451122
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD3 Nonstandard 0.500Lx0.406W 12.70mmx10.30mm 22muH
PDF
/
Buying Options
Total Price: USD $20.82
Unit Price: USD $20.82305
≥1 USD $20.82305
≥10 USD $17.08575
≥100 USD $16.55185
≥500 USD $16.01795
≥1000 USD $15.48405
Inventory: 1115
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD3
Size / Dimension 0.500Lx0.406W 12.70mmx10.30mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Resistance 90mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 700mA
Shielding Shielded
Depth 4.45mm
Current Rating 700mA
Inductance 22μH
Test Frequency 100kHz
DC Resistance (DCR) 110mOhm Max
Max DC Current 700mA
Frequency - Self Resonant 20.5MHz
Inductance Frequency - Test 100kHz
Current - Saturation 160mA
Inductance Tolerance 20%
RMS Current (Irms) 700mA
Dimensions
Height 2.921mm
Height Seated (Max) 0.118 3.00mm
Length 6.604mm
Width 4.445mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
