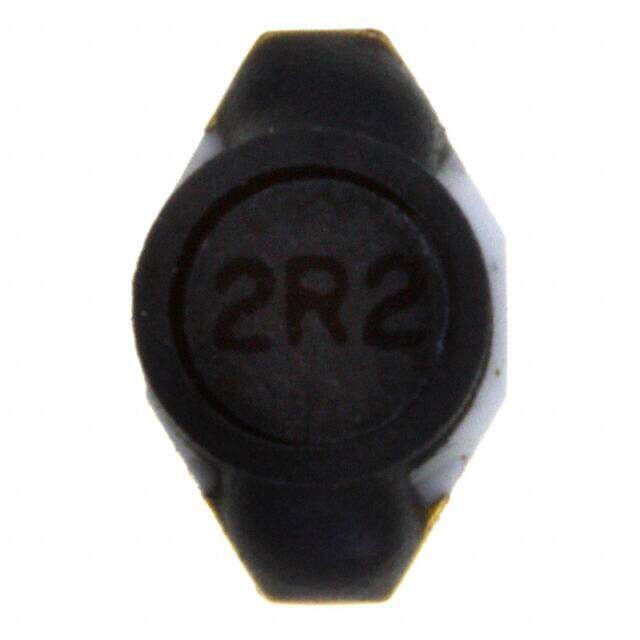

74451022 image
Favorite
74451022 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD3 Nonstandard 0.260Lx0.175W 6.60mmx4.45mm 2.2muH
PDF
/
Buying Options
Total Price: USD $2.21
Unit Price: USD $2.21255
≥1 USD $2.21255
≥10 USD $1.81545
≥100 USD $1.75845
≥500 USD $1.70145
≥1000 USD $1.6454
Inventory: 1118
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 10.3124mm
Length 12.7mm
Height Seated (Max) 0.118 3.00mm
Height 2.92mm

Technical

RMS Current (Irms) 1.8A
Inductance Tolerance 20%
Current - Saturation 1.08A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 65MHz
Max DC Current 1.8A
DC Resistance (DCR) 50mOhm Max
Test Frequency 100kHz
Inductance 2.2μH
Current Rating 1.8A
Depth 4.45mm
Shielding Shielded
Current Rating (Amps) 1.8A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 21mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.260Lx0.175W 6.60mmx4.45mm
Series WE-PD3
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
