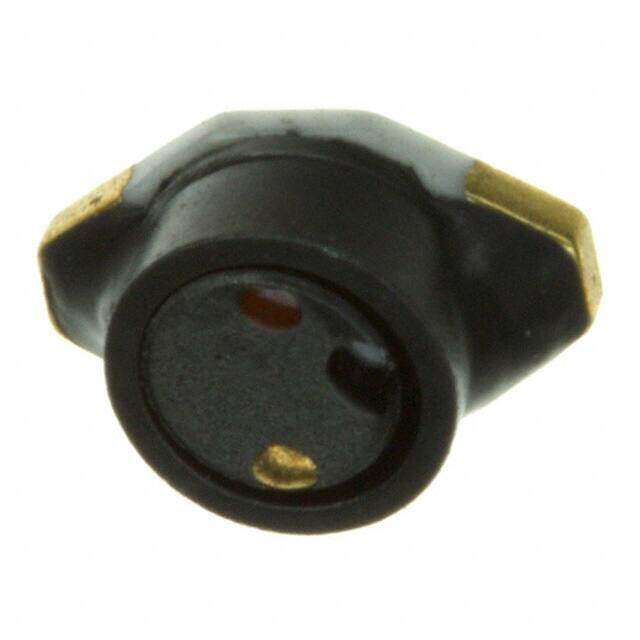

7445101 image
Favorite
7445101 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD3 Nonstandard 0.500Lx0.406W 12.70mmx10.30mm 1muH
PDF
/
Buying Options
Total Price: USD $0.81
Unit Price: USD $0.8056
≥1 USD $0.8056
≥10 USD $0.6612
≥100 USD $0.6403
≥500 USD $0.62035
≥1000 USD $0.59945
Inventory: 1174
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 10.3124mm
Length 12.7mm
Height Seated (Max) 0.118 3.00mm
Height 2.92mm

Technical

RMS Current (Irms) 3A
Inductance Tolerance 20%
Current - Saturation 1.62A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 83MHz
Max DC Current 3A
DC Resistance (DCR) 40mOhm Max
Test Frequency 100kHz
Inductance 1μH
Current Rating 3A
Depth 4.45mm
Shielding Shielded
Current Rating (Amps) 3A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 14mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.500Lx0.406W 12.70mmx10.30mm
Series WE-PD3
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
