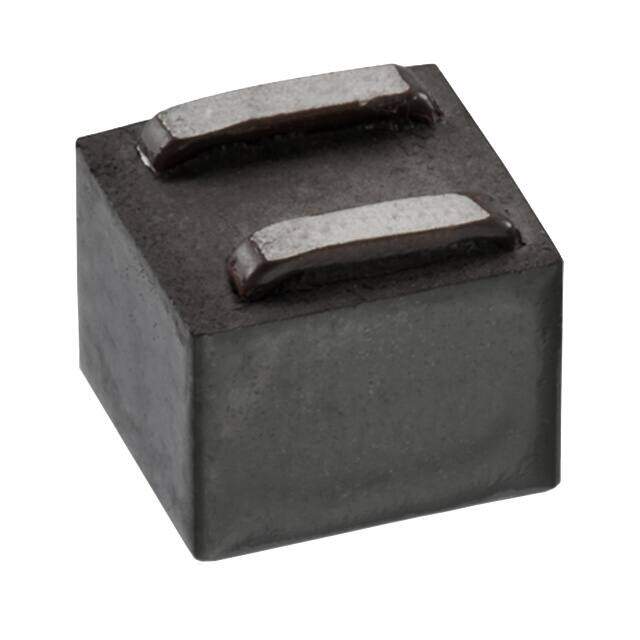

74439369056
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 5.6UH 11.5A 6.4 MOHM
PDF
/
Buying Options
Total Price: USD $4.07
Unit Price: USD $4.06832
≥1 USD $4.06832
≥10 USD $3.838041
≥100 USD $3.62079
≥500 USD $3.415834
≥1000 USD $3.222497
Inventory: 1088
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Metal Composite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-XHMI
Size / Dimension 0.457Lx0.413W 11.60mmx10.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 11.5A
Shielding Shielded
Current Rating 11.5A
Inductance 5.6μH
DC Resistance (DCR) 6.4mOhm
Frequency - Self Resonant 14MHz
Inductance Frequency - Test 100kHz
Current - Saturation 23A
Inductance Tolerance 20%
RMS Current (Irms) 11.5A
Dimensions
Height Seated (Max) 0.358 9.10mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
