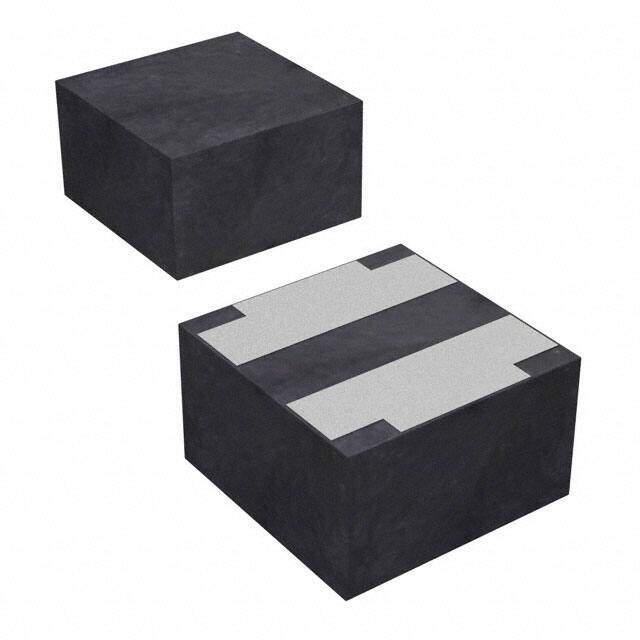

74438356010 image
Favorite
74438356010 image
Favorite

74438356010

Würth Elektronik
RoHS
RoHS RoHS compliant
Package 2-SMD
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-MAPI 2-SMD 0.161Lx0.161W 4.10mmx4.10mm 1muH
PDF
/
Buying Options
Total Price: USD $2.15
Unit Price: USD $2.14795
≥1 USD $2.14795
≥10 USD $1.7632
≥100 USD $1.7081
≥500 USD $1.653
≥1000 USD $1.5979
Inventory: 3168
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 4.0894mm
Length 4.0894mm
Height Seated (Max) 0.083 2.10mm

Technical

RMS Current (Irms) 7.2A
Inductance Tolerance 20%
Current - Saturation 9A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 55MHz
DC Resistance (DCR) 15mOhm Max
Test Frequency 100kHz
Inductance 1μH
Current Rating 7.2A
Shielding Shielded
Current Rating (Amps) 7.2A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Molded
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.161Lx0.161W 4.10mmx4.10mm
Series WE-MAPI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Metal Composite
Supplier Device Package 4020
Number of Pins 2
Package / Case 2-SMD
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 14 Weeks
