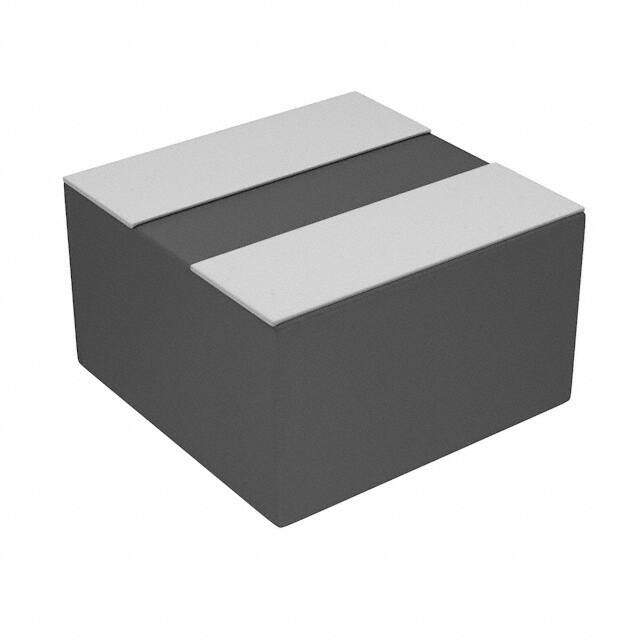

74438336068
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-MAPI 2-SMD 0.118Lx0.118W 3.00mmx3.00mm 6.8muH
PDF
/
Buying Options
Total Price: USD $15.06
Unit Price: USD $15.0556
≥1 USD $15.0556
≥10 USD $12.3538
≥100 USD $11.9681
≥500 USD $11.58145
≥1000 USD $11.19575
Inventory: 1190
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 2.9972mm
Length 2.9972mm
Height Seated (Max) 0.079 2.00mm
Height 2mm
Technical
Ambient Temperature Range High 85°C
Series Resistance 193mOhm
RMS Current (Irms) 1.6A
Inductance Tolerance 20%
Current - Saturation 2.85A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 22MHz
Max DC Current 1.6A
DC Resistance (DCR) 193mOhm Max
Test Frequency 100kHz
Inductance 6.8μH
Case Code (Imperial) 1212
Case Code (Metric) 3030
Current Rating 1.6A
Shielding Shielded
Current Rating (Amps) 1.6A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Molded
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.118Lx0.118W 3.00mmx3.00mm
Series WE-MAPI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Metal Composite
Supplier Device Package 3020
Number of Pins 2
Package / Case 2-SMD
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
