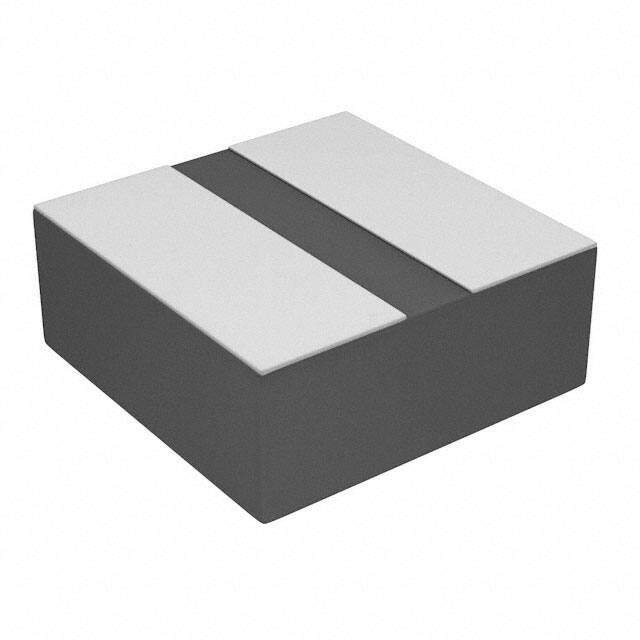

74438335033 image
Favorite
74438335033 image
Favorite

74438335033

Würth Elektronik
RoHS
RoHS RoHS compliant
Package 1212 (3030 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-MAPI 1212 (3030Metric) 0.118Lx0.118W 3.00mmx3.00mm 3.3muH
PDF
/
Buying Options
Total Price: USD $1
Unit Price: USD $0.995062
≥1 USD $0.995062
≥10 USD $0.938743
≥100 USD $0.8856
≥500 USD $0.835478
≥1000 USD $0.788185
Inventory: 1122
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 2.9972mm
Length 3mm
Height Seated (Max) 0.059 1.50mm
Height 1.5mm

Technical

Ambient Temperature Range High 85°C
Series Resistance 131mOhm
RMS Current (Irms) 1.7A
Inductance Tolerance 20%
Current - Saturation 3.2A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 35MHz
Max DC Current 1.7A
DC Resistance (DCR) 131mOhm Max
Test Frequency 100kHz
Inductance 3.3μH
Case Code (Imperial) 1212
Case Code (Metric) 3030
Current Rating 1.7A
Depth 3mm
Shielding Shielded
Current Rating (Amps) 1.7A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Molded
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.118Lx0.118W 3.00mmx3.00mm
Series WE-MAPI
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C

Physical

Material - Core Metal Composite
Supplier Device Package 1212 (3030 Metric)
Package / Case 1212 (3030 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 49 Weeks
