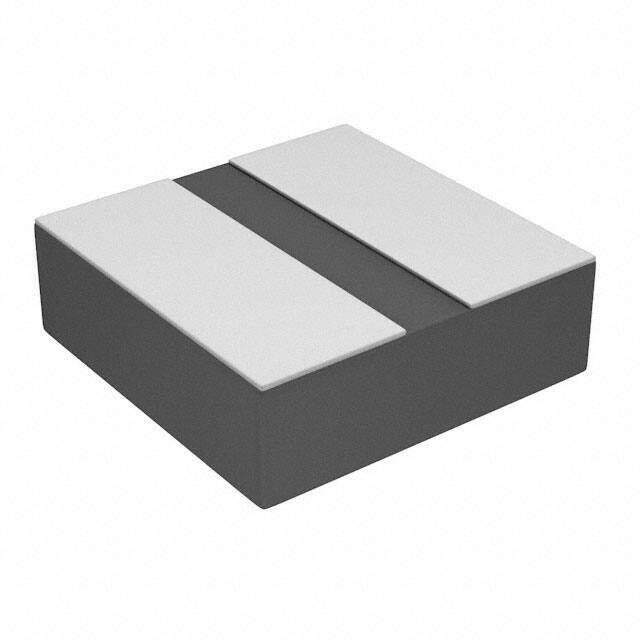

74438333022
RoHS
RoHS compliant
RoHS compliantPackage 1212 (3030 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-MAPI 1212 (3030Metric) 0.118Lx0.118W 3.00mmx3.00mm 2.2muH
PDF
/
Buying Options
Total Price: USD $1.06
Unit Price: USD $1.056
≥1 USD $1.056
≥10 USD $1.04016
≥100 USD $0.97064
≥500 USD $0.902
≥1000 USD $0.83248
Inventory: 3813
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1212 (3030 Metric)
Supplier Device Package 1212 (3030 Metric)
Material - Core Metal Composite
Technical
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Series WE-MAPI
Size / Dimension 0.118Lx0.118W 3.00mmx3.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Molded
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 1.4A
Shielding Shielded
Depth 3mm
Current Rating 1.4A
Case Code (Metric) 3030
Case Code (Imperial) 1212
Inductance 2.2μH
Test Frequency 100kHz
DC Resistance (DCR) 172mOhm Max
Max DC Current 1.4A
Frequency - Self Resonant 50MHz
Inductance Frequency - Test 100kHz
Current - Saturation 3.9A
Inductance Tolerance 20%
RMS Current (Irms) 1.4A
Series Resistance 150mOhm
Dimensions
Height 1mm
Height Seated (Max) 0.039 1.00mm
Length 3mm
Width 2.9972mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
