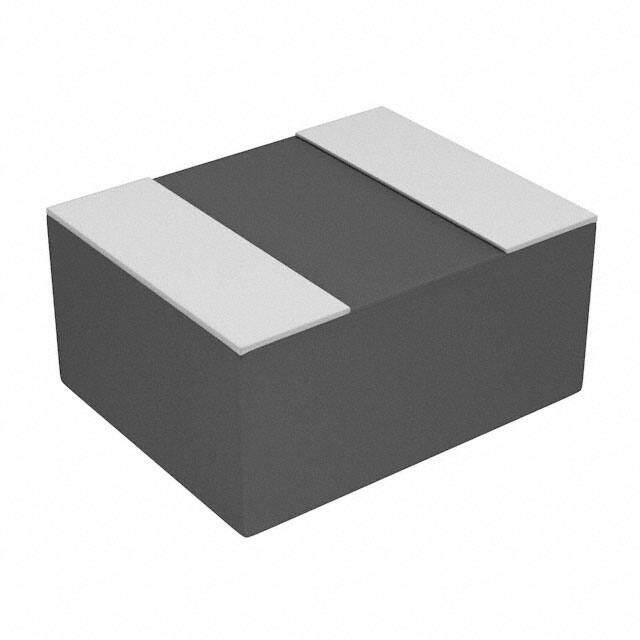

74438324012
RoHS
RoHS compliant
RoHS compliantPackage 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-MAPI 1008 (2520Metric) 0.098Lx0.079W 2.50mmx2.00mm 1.2muH
PDF
/
Buying Options
Total Price: USD $14.96
Unit Price: USD $14.9625
≥1 USD $14.9625
≥10 USD $12.27685
≥100 USD $11.894
≥500 USD $11.5102
≥1000 USD $11.1264
Inventory: 2747
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 2512
Weight 32.006612mg
Material - Core Metal Composite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-MAPI
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Molded
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 2.4A
Shielding Shielded
Current Rating 2.4A
Case Code (Metric) 2520
Case Code (Imperial) 1008
Inductance 1.2μH
Test Frequency 100kHz
DC Resistance (DCR) 80mOhm Max
Max DC Current 2.4A
Frequency - Self Resonant 80MHz
Inductance Frequency - Test 100kHz
Current - Saturation 4.5A
Inductance Tolerance 20%
RMS Current (Irms) 2.4A
Dimensions
Height 1.2mm
Height Seated (Max) 0.047 1.20mm
Length 2.4892mm
Width 2.0066mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
