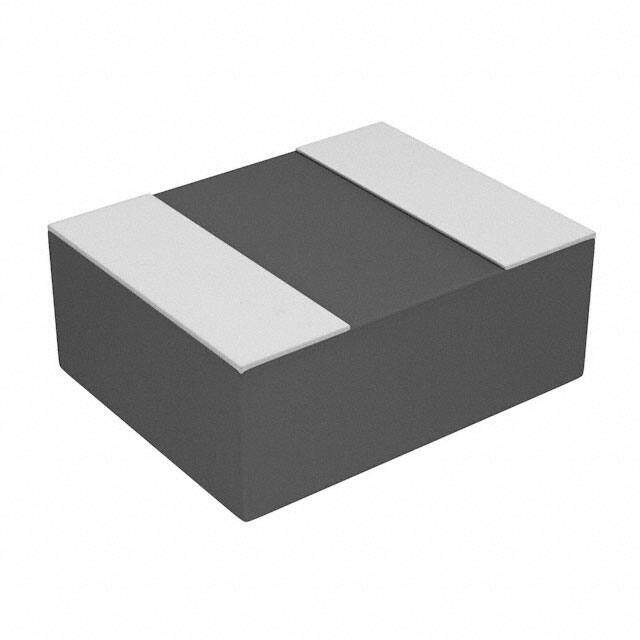

74438323012
RoHS
RoHS compliant
RoHS compliantPackage 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-MAPI 1008 (2520Metric) 0.098Lx0.079W 2.50mmx2.00mm 1.2muH
PDF
/
Buying Options
Total Price: USD $10.39
Unit Price: USD $10.3873
≥1 USD $10.3873
≥10 USD $8.5234
≥100 USD $8.25645
≥500 USD $7.99045
≥1000 USD $7.72445
Inventory: 1139
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 2mm
Length 2.5mm
Height Seated (Max) 0.039 1.00mm
Height 1mm
Technical
Series Resistance 82mOhm
RMS Current (Irms) 1.9A
Inductance Tolerance 20%
Current - Saturation 3.8A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 75MHz
Max DC Current 1.9A
DC Resistance (DCR) 106mOhm Max
Test Frequency 100kHz
Inductance 1.2μH
Case Code (Imperial) 1008
Case Code (Metric) 2520
Current Rating 1.9A
Depth 2mm
Shielding Shielded
Current Rating (Amps) 1.9A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Molded
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Tolerance ±20%
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Series WE-MAPI
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C
Physical
Material - Core Metal Composite
Weight 32.006612mg
Supplier Device Package 1008 (2520 Metric)
Package / Case 1008 (2520 Metric)
Mounting Type Surface Mount
Mount Surface Mount
