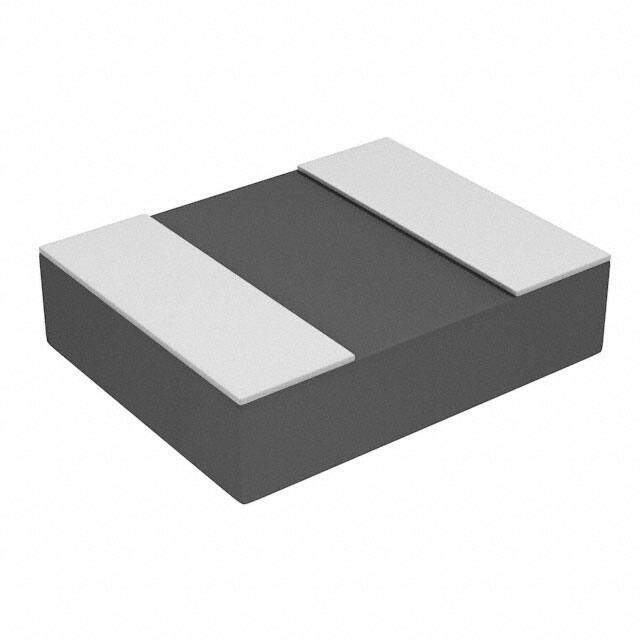

74438321010
RoHS
RoHS compliant
RoHS compliantPackage 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-MAPI 1008 (2520Metric) 0.098Lx0.079W 2.50mmx2.00mm 1muH
PDF
/
Buying Options
Total Price: USD $15.17
Unit Price: USD $15.17245
≥1 USD $15.17245
≥10 USD $12.4488
≥100 USD $12.06025
≥500 USD $11.67075
≥1000 USD $11.2822
Inventory: 1116
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 2.0066mm
Length 2.5mm
Height Seated (Max) 0.024 0.60mm
Height 600μm
Technical
Series Resistance 163mOhm
RMS Current (Irms) 1.25A
Inductance Tolerance 30%
Current - Saturation 2.5A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 90MHz
Max DC Current 1.25A
DC Resistance (DCR) 196mOhm Max
Test Frequency 100kHz
Inductance 1μH
Case Code (Imperial) 1008
Case Code (Metric) 2520
Current Rating 1.25A
Depth 2mm
Shielding Shielded
Current Rating (Amps) 1.25A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Molded
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Series WE-MAPI
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C
Physical
Material - Core Metal Composite
Weight 32.006612mg
Supplier Device Package 1008 (2520 Metric)
Package / Case 1008 (2520 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
