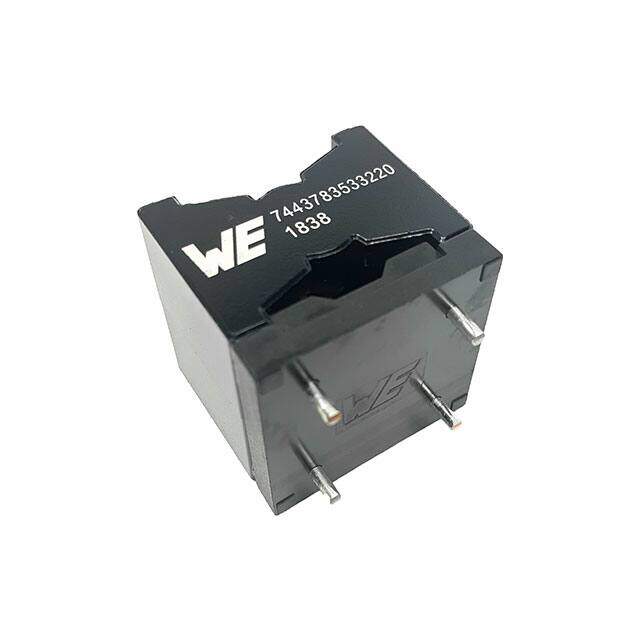

7443783533220
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active Bulk fixed air core inductor -40C~125C 8.15MHz 8.8mOhm Max 22muH
PDF
/
Buying Options
Total Price: USD $23.07
Unit Price: USD $23.068966
≥1 USD $23.068966
≥198 USD $9.204742
≥504 USD $8.897523
≥999 USD $8.745227
Inventory: 1102
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 35 Weeks
Physical
Mounting Type Through Hole
Package / Case Nonstandard
Material - Core Manganese Zinc Ferrite (MnZn)
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Series WE-HCFT
Size / Dimension 1.417Lx1.358W 36.00mmx34.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 23.2A
Shielding Shielded
Inductance 22μH
DC Resistance (DCR) 8.8mOhm Max
Frequency - Self Resonant 8.15MHz
Inductance Frequency - Test 100kHz
Current - Saturation 49.4A
Dimensions
Height Seated (Max) 1.378 35.00mm
Compliance
RoHS Status ROHS3 Compliant
