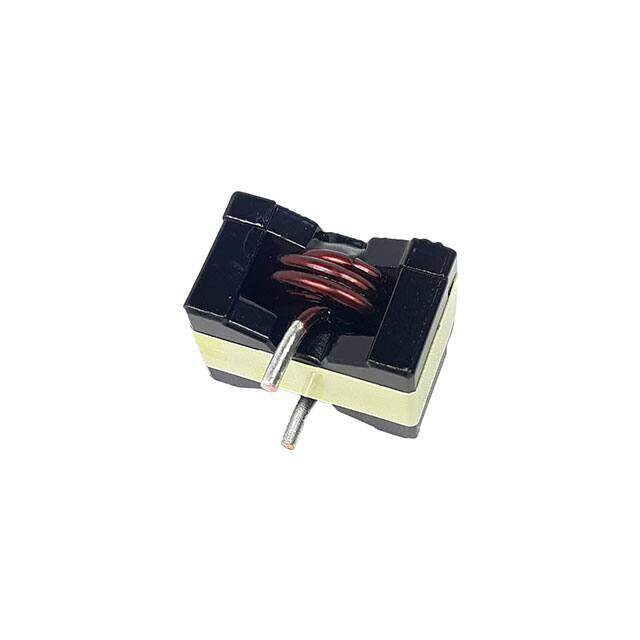

7443782012033
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active Bulk fixed air core inductor -40C~125C 40MHz 2.4mOhm Max 3.3muH
PDF
/
Buying Options
Total Price: USD $8.72
Unit Price: USD $8.71503
≥1 USD $8.71503
≥200 USD $3.477872
≥480 USD $3.361024
≥1000 USD $3.303256
Inventory: 1140
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 63 Weeks
Physical
Mounting Type Through Hole
Package / Case Nonstandard
Material - Core Manganese Zinc Ferrite (MnZn)
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Series WE-HCFT
Size / Dimension 0.866Lx0.669W 22.00mmx17.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 28.7A
Shielding Shielded
Inductance 3.3μH
DC Resistance (DCR) 2.4mOhm Max
Frequency - Self Resonant 40MHz
Inductance Frequency - Test 100kHz
Current - Saturation 43A
Dimensions
Height Seated (Max) 0.531 13.50mm
Compliance
RoHS Status ROHS3 Compliant
