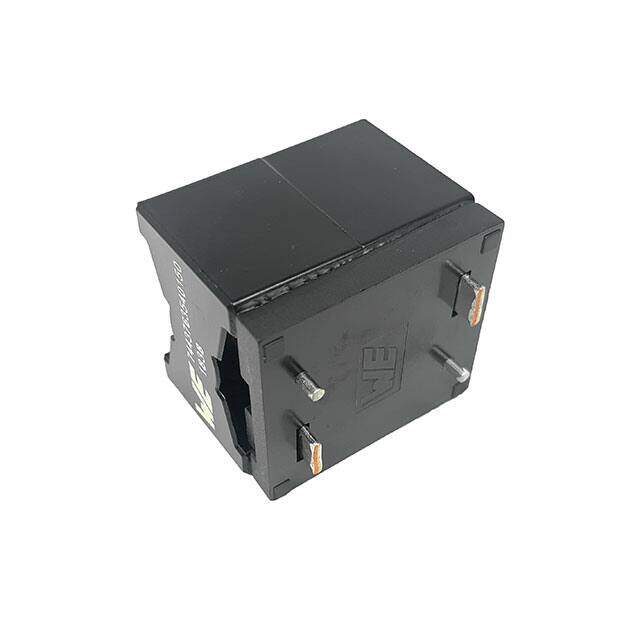

7443763540150
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active Bulk fixed air core inductor -40C~125C 12MHz 2.16mOhm Max 15muH
PDF
/
Buying Options
Total Price: USD $19.85
Unit Price: USD $19.8528
≥1 USD $19.8528
≥10 USD $18.128
≥100 USD $16.3944
≥500 USD $14.6696
≥1000 USD $13.376
Inventory: 86
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 35 Weeks
Physical
Mounting Type Through Hole
Package / Case Nonstandard
Material - Core Manganese Zinc Ferrite (MnZn)
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Series WE-HCFT
Size / Dimension 1.614Lx1.417W 41.00mmx36.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 45.3A
Shielding Shielded
Inductance 15μH
DC Resistance (DCR) 2.16mOhm Max
Frequency - Self Resonant 12MHz
Inductance Frequency - Test 100kHz
Current - Saturation 51.6A
Dimensions
Height Seated (Max) 1.378 35.00mm
Compliance
RoHS Status ROHS3 Compliant
