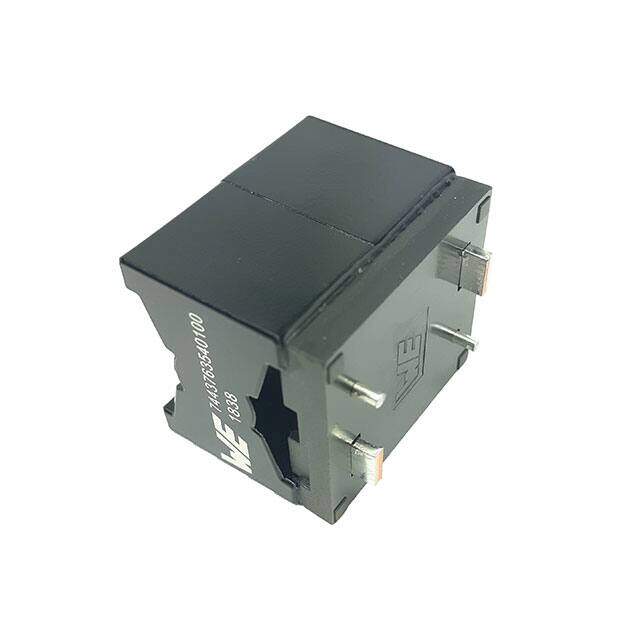

7443763540100
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active Bulk fixed air core inductor -40C~125C 14MHz 1.2mOhm Max 10muH
PDF
/
Buying Options
Total Price: USD $34.86
Unit Price: USD $34.856182
≥1 USD $34.856182
≥198 USD $13.90755
≥498 USD $13.442783
≥1002 USD $13.213026
Inventory: 9654
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 35 Weeks
Physical
Mounting Type Through Hole
Package / Case Nonstandard
Material - Core Manganese Zinc Ferrite (MnZn)
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Series WE-HCFT
Size / Dimension 1.614Lx1.417W 41.00mmx36.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 56.7A
Shielding Shielded
Inductance 10μH
DC Resistance (DCR) 1.2mOhm Max
Frequency - Self Resonant 14MHz
Inductance Frequency - Test 100kHz
Current - Saturation 62A
Dimensions
Height Seated (Max) 1.378 35.00mm
Compliance
RoHS Status ROHS3 Compliant
