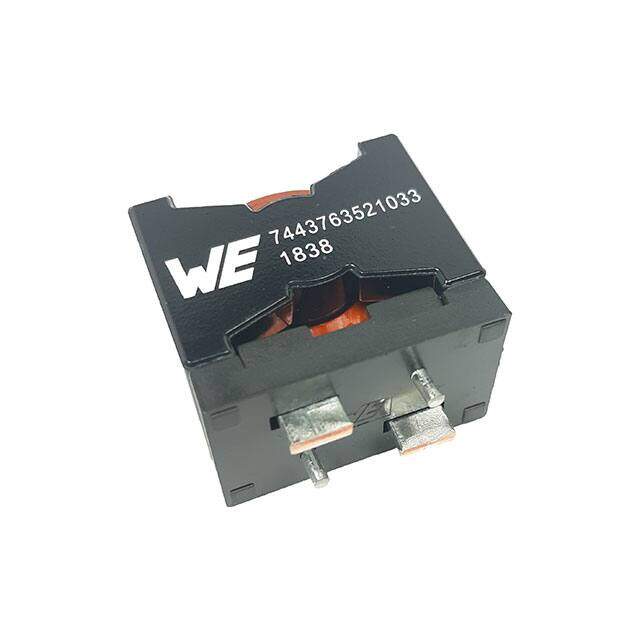

7443763521033
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active Bulk Fixed Inductor -40C~125C 25MHz 0.4mOhm Max 3.3muH
PDF
/
Buying Options
Total Price: USD $9.86
Unit Price: USD $9.863387
≥1 USD $9.863387
≥10 USD $9.305079
≥100 USD $8.778379
≥500 USD $8.281484
≥1000 USD $7.812725
Inventory: 1263
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Through Hole
Package / Case Nonstandard
Material - Core Manganese Zinc Ferrite (MnZn)
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Series WE-HCFT
Size / Dimension 1.417Lx0.846W 36.00mmx21.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 75A
Shielding Shielded
Inductance 3.3μH
DC Resistance (DCR) 0.4mOhm Max
Frequency - Self Resonant 25MHz
Inductance Frequency - Test 100kHz
Current - Saturation 91A
Dimensions
Height Seated (Max) 1.378 35.00mm
Compliance
RoHS Status ROHS3 Compliant
