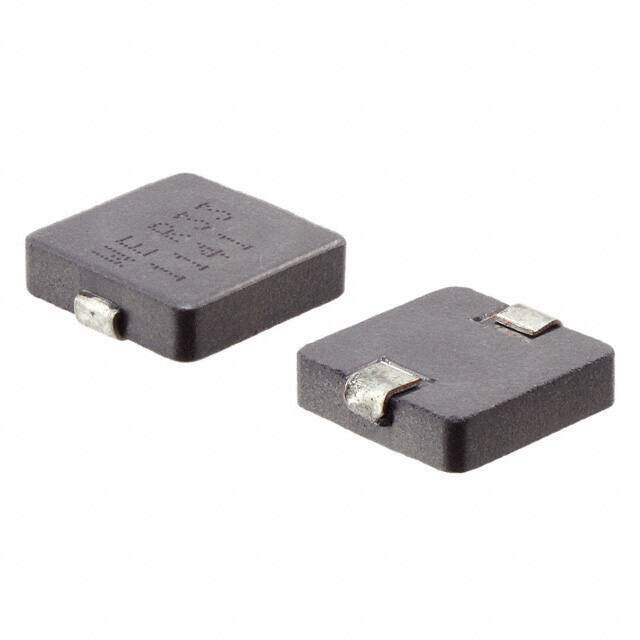

744373770047
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-LHMI Nonstandard 0.531Lx0.496W 13.50mmx12.60mm 470nH
PDF
/
Buying Options
Total Price: USD $2.56
Unit Price: USD $2.5608
≥1 USD $2.5608
≥10 USD $2.51328
≥100 USD $2.32056
≥500 USD $2.12608
≥1000 USD $2.03016
Inventory: 798
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Iron Powder
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-LHMI
Size / Dimension 0.531Lx0.496W 13.50mmx12.60mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Molded
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 19A
Shielding Shielded
Depth 12.6mm
Current Rating 19A
Frequency 77MHz
Inductance 470nH
Test Frequency 100kHz
DC Resistance (DCR) 1.6mOhm Max
Max DC Current 19A
Frequency - Self Resonant 77MHz
Inductance Frequency - Test 100kHz
Current - Saturation 29A
Inductance Tolerance 20%
Series Resistance 1.6mOhm
Dimensions
Height 3.3mm
Height Seated (Max) 0.138 3.50mm
Length 13.5mm
Width 12.6mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
