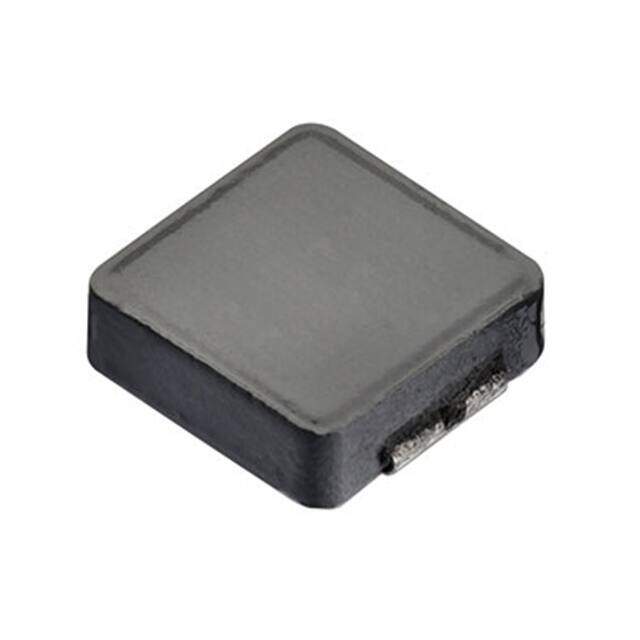

74437356047
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-LHMI Nonstandard 0.362Lx0.335W 9.20mmx8.50mm 4.7muH
PDF
/
Buying Options
Total Price: USD $18.26
Unit Price: USD $18.25995
≥1 USD $18.25995
≥10 USD $14.98245
≥100 USD $14.5141
≥500 USD $14.04575
≥1000 USD $13.57835
Inventory: 1176
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 8.509mm
Length 9.1948mm
Height Seated (Max) 0.118 3.00mm
Height 3mm
Technical
Ambient Temperature Range High 85°C
Series Resistance 34.2mOhm
RMS Current (Irms) 6.2A
Current - Saturation 11A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 16MHz
DC Resistance (DCR) 34.2mOhm Max
Test Frequency 100kHz
Inductance 4.7μH
Current Rating 6.2A
Shielding Shielded
Current Rating (Amps) 6.2A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Molded
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.362Lx0.335W 9.20mmx8.50mm
Series WE-LHMI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Iron Powder
Supplier Device Package 8030
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 15 Weeks
