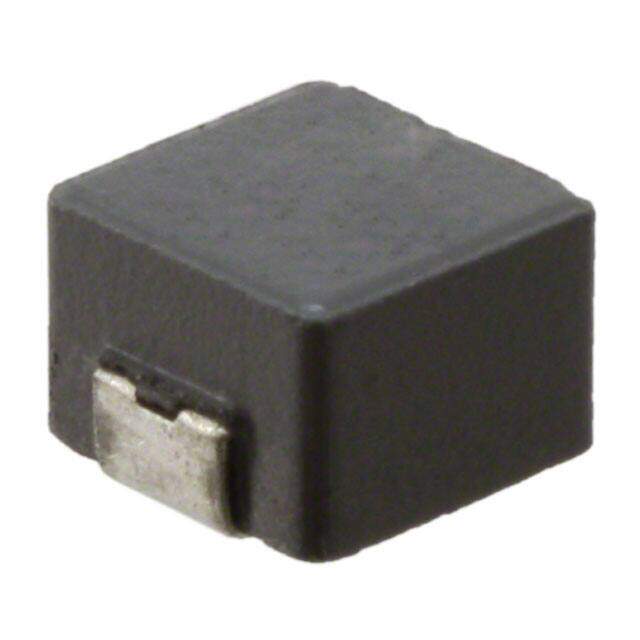

74437349068
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-LHMI Nonstandard 0.287Lx0.260W 7.30mmx6.60mm 6.8muH
PDF
/
Buying Options
Total Price: USD $1.86
Unit Price: USD $1.859832
≥1 USD $1.859832
≥10 USD $1.754556
≥100 USD $1.655242
≥500 USD $1.561549
≥1000 USD $1.473164
Inventory: 1225
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Iron Powder
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-LHMI
Size / Dimension 0.287Lx0.260W 7.30mmx6.60mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Molded
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 3.5A
Shielding Shielded
Depth 6.6mm
Current Rating 3.5A
Frequency 16MHz
Inductance 6.8μH
Test Frequency 100kHz
DC Resistance (DCR) 51.5mOhm Max
Max DC Current 3.5A
Frequency - Self Resonant 16MHz
Inductance Frequency - Test 100kHz
Current - Saturation 9.5A
Inductance Tolerance 20%
RMS Current (Irms) 3.5A
Series Resistance 51.5MOhm
Dimensions
Height 4.8mm
Height Seated (Max) 0.197 5.00mm
Length 7.3mm
Width 6.6mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
