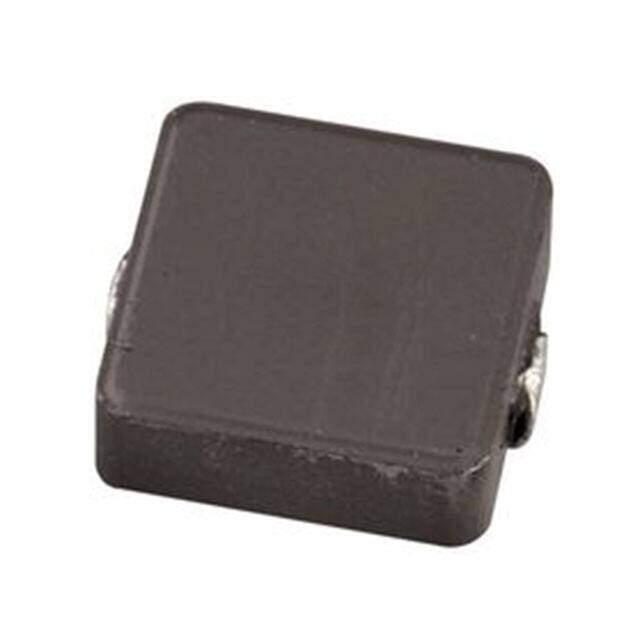

74437336068 image
Favorite
74437336068 image
Favorite

74437336068

Würth Elektronik
RoHS
RoHS RoHS compliant
Package 2-SMD
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-LHMI 2-SMD 0.205Lx0.205W 5.20mmx5.20mm 6.8muH
PDF
/
Buying Options
Total Price: USD $2.38
Unit Price: USD $2.3848
≥1 USD $2.3848
≥10 USD $2.21496
≥100 USD $2.01432
≥500 USD $1.8304
≥1000 USD $1.66408
Inventory: 6114
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 5.207mm
Length 5.207mm
Height Seated (Max) 0.118 3.00mm

Technical

RMS Current (Irms) 2.6A
Inductance Tolerance 20%
Current - Saturation 4.5A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 20MHz
DC Resistance (DCR) 76.2mOhm Max
Test Frequency 100kHz
Inductance 6.8μH
Current Rating 2.6A
Shielding Shielded
Current Rating (Amps) 2.6A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Molded
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.205Lx0.205W 5.20mmx5.20mm
Series WE-LHMI
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C

Physical

Material - Core Iron Powder
Supplier Device Package 5030
Number of Pins 2
Package / Case 2-SMD
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 17 Weeks
