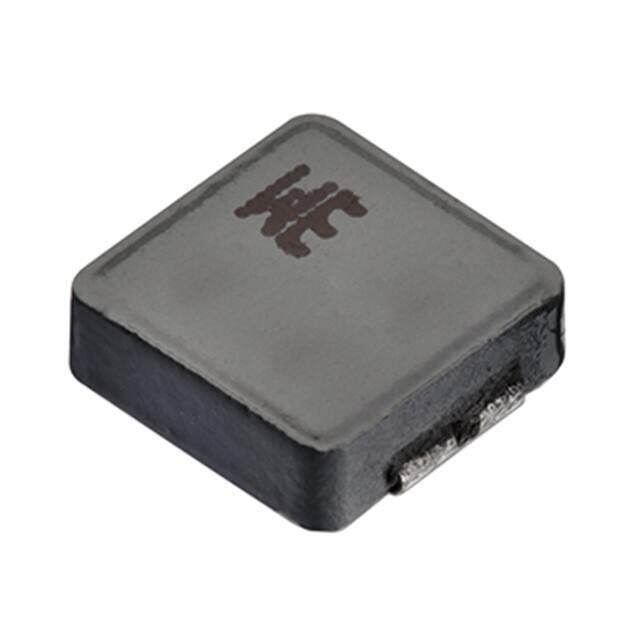

74437334047
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-LHMI 2-SMD 0.205Lx0.205W 5.20mmx5.20mm 4.7muH
PDF
/
Buying Options
Total Price: USD $22.93
Unit Price: USD $22.933
≥1 USD $22.933
≥10 USD $18.81665
≥100 USD $18.2286
≥500 USD $17.64055
≥1000 USD $17.0525
Inventory: 3808
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 5.207mm
Length 5.207mm
Height Seated (Max) 0.079 2.00mm
Technical
RMS Current (Irms) 2.5A
Inductance Tolerance 20%
Current - Saturation 6A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 27MHz
DC Resistance (DCR) 116mOhm Max
Test Frequency 100kHz
Inductance 4.7μH
Current Rating 2.5A
Shielding Shielded
Current Rating (Amps) 2.5A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Molded
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.205Lx0.205W 5.20mmx5.20mm
Series WE-LHMI
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C
Physical
Material - Core Iron Powder
Supplier Device Package 5020
Number of Pins 2
Package / Case 2-SMD
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 17 Weeks
