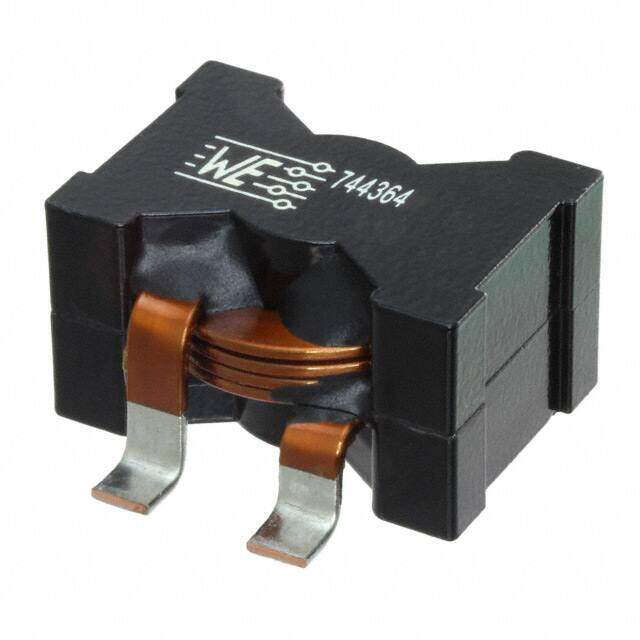

74436410680
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 6.8UH 36A 1.441 MOHM
PDF
/
Buying Options
Total Price: USD $13.27
Unit Price: USD $13.27435
≥1 USD $13.27435
≥10 USD $10.89175
≥100 USD $10.55165
≥500 USD $10.2106
≥1000 USD $9.8705
Inventory: 55
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 22 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 2815
Material - Core Manganese Zinc Ferrite (MnZn)
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Series WE-HCF
Size / Dimension 1.102Lx0.764W 28.00mmx19.40mm
Tolerance ±15%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 36A
Shielding Shielded
Inductance 6.8μH
DC Resistance (DCR) 1.441mOhm Max
Frequency - Self Resonant 17.03MHz
Inductance Frequency - Test 100kHz
Current - Saturation 30A
Inductance Tolerance 15%
Dimensions
Height Seated (Max) 0.606 15.40mm
Compliance
RoHS Status ROHS3 Compliant
