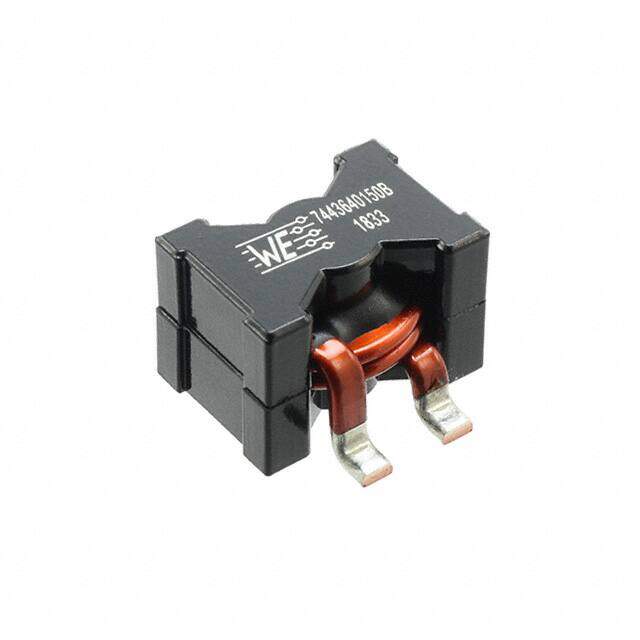

7443640150B
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active Bulk fixed air core inductor -40C~125C 37.6MHz 0.484mOhm Max 1.5muH
PDF
/
Buying Options
Total Price: USD $7.7
Unit Price: USD $7.702614
≥1 USD $7.702614
≥10 USD $7.266615
≥100 USD $6.855297
≥500 USD $6.467258
≥1000 USD $6.101192
Inventory: 1193
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.728 18.50mm
Technical
Current - Saturation 91.8A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 37.6MHz
DC Resistance (DCR) 0.484mOhm Max
Inductance 1.5μH
Shielding Shielded
Current Rating (Amps) 56A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 1.102Lx0.764W 28.00mmx19.40mm
Series WE-HCF
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Material - Core Manganese Zinc Ferrite (MnZn)
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 20 Weeks
