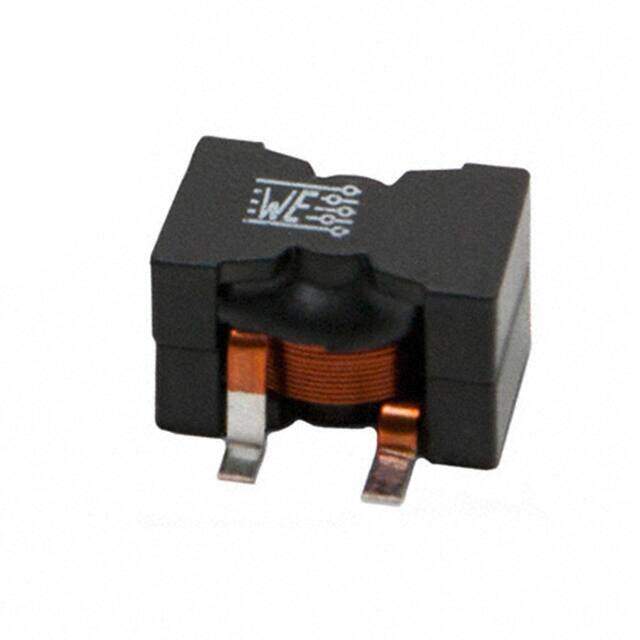

7443630140 image
Favorite
7443630140 image
Favorite

7443630140

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-HCF Nonstandard 0.846Lx0.827W 21.50mmx21.00mm 1.4muH
PDF
/
Buying Options
Total Price: USD $51.72
Unit Price: USD $51.7161
≥1 USD $51.7161
≥10 USD $42.43365
≥100 USD $41.10745
≥500 USD $39.7822
≥1000 USD $38.456
Inventory: 1171
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 22 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 3
Material - Core Manganese Zinc Ferrite (MnZn)

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-HCF
Size / Dimension 0.846Lx0.827W 21.50mmx21.00mm
Tolerance ±15%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 1.08Ohm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 31.5A
Shielding Shielded
Depth 21mm
Current Rating 31.5A
Frequency 52MHz
Inductance 1.4μH
Test Frequency 100kHz
DC Resistance (DCR) 1.08mOhm
Max DC Current 31.5A
Frequency - Self Resonant 52MHz
Inductance Frequency - Test 100kHz
Current - Saturation 60A
Inductance Tolerance 15%
RMS Current (Irms) 31.5A

Dimensions

Height 14mm
Height Seated (Max) 0.551 14.00mm
Length 21.5mm
Width 21.0058mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
