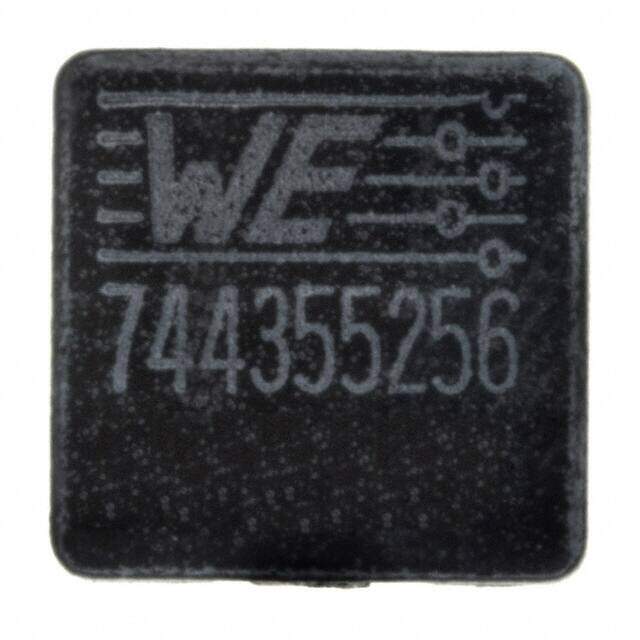

744355256
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.413Lx0.402W 10.50mmx10.20mm 560nH
PDF
/
Buying Options
Total Price: USD $1.38
Unit Price: USD $1.3832
≥1 USD $1.3832
≥10 USD $1.13525
≥100 USD $1.09915
≥500 USD $1.064
≥1000 USD $1.02885
Inventory: 1145
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 10.2mm
Length 10.5mm
Height Seated (Max) 0.165 4.20mm
Height 4mm
Technical
Series Resistance 1.61Ohm
RMS Current (Irms) 20A
Inductance Tolerance 20%
Current - Saturation 30A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 100MHz
Max DC Current 20A
DC Resistance (DCR) 1.61mOhm
Test Frequency 100kHz
Inductance 560nH
Current Rating 20A
Depth 10.2mm
Shielding Shielded
Current Rating (Amps) 20A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 155°C
Resistance 1.61mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.413Lx0.402W 10.50mmx10.20mm
Series WE-HCI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~155°C
Physical
Supplier Device Package 1040
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
