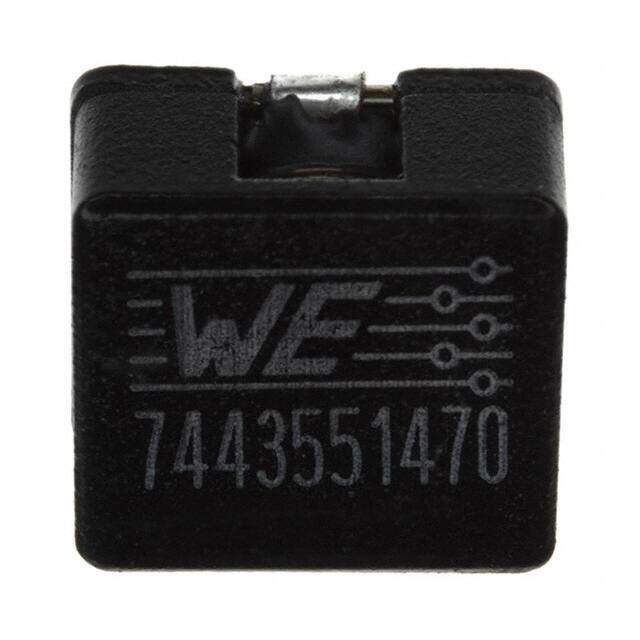

7443551470
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.512Lx0.504W 13.00mmx12.80mm 4.7muH
PDF
/
Buying Options
Total Price: USD $3.18
Unit Price: USD $3.17965
≥1 USD $3.17965
≥10 USD $2.60965
≥100 USD $2.52795
≥500 USD $2.44625
≥1000 USD $2.36455
Inventory: 1148
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 1365
Technical
Operating Temperature -40°C~155°C
Packaging Tape & Reel (TR)
Series WE-HCI
Size / Dimension 0.512Lx0.504W 13.00mmx12.80mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 155°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 13A
Shielding Shielded
Current Rating 13A
Inductance 4.7μH
Test Frequency 100kHz
DC Resistance (DCR) 7mOhm
Max DC Current 13A
Frequency - Self Resonant 30MHz
Inductance Frequency - Test 100kHz
Current - Saturation 15A
Inductance Tolerance 20%
RMS Current (Irms) 13A
Series Resistance 7mOhm
Ambient Temperature Range High 105°C
Dimensions
Height 6.5mm
Height Seated (Max) 0.256 6.50mm
Length 13.0048mm
Width 12.8mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
