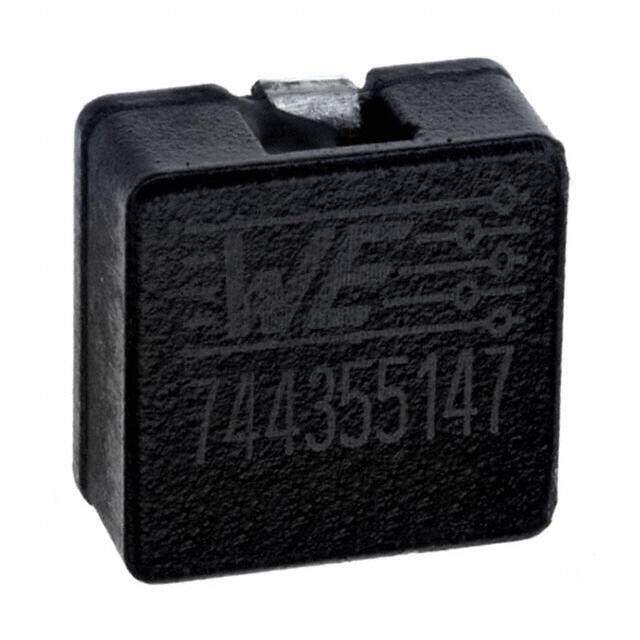

744355147
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 470NH 30A 0.67 MOHM
PDF
/
Buying Options
Total Price: USD $3.06
Unit Price: USD $3.0624
≥1 USD $3.0624
≥10 USD $3.0008
≥100 USD $2.772
≥500 USD $2.6576
≥1000 USD $2.4816
Inventory: 1171
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 1365
Technical
Operating Temperature -40°C~155°C
Packaging Tape & Reel (TR)
Series WE-HCI
Size / Dimension 0.512Lx0.504W 13.00mmx12.80mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 30A
Shielding Shielded
Inductance 470nH
DC Resistance (DCR) 0.67mOhm
Frequency - Self Resonant 100MHz
Inductance Frequency - Test 100kHz
Current - Saturation 50A
Dimensions
Height Seated (Max) 0.256 6.50mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
