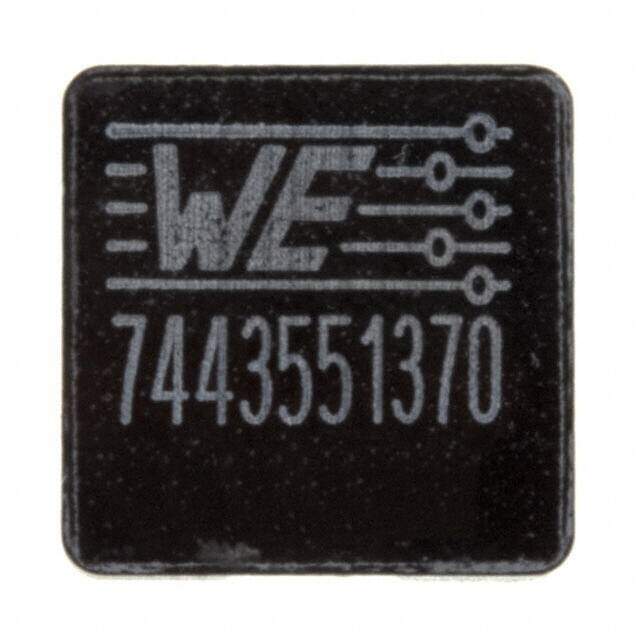

7443551370
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.512Lx0.504W 13.00mmx12.80mm 3.7muH
PDF
/
Buying Options
Total Price: USD $2.22
Unit Price: USD $2.21825
≥1 USD $2.21825
≥10 USD $1.8202
≥100 USD $1.7632
≥500 USD $1.7062
≥1000 USD $1.6492
Inventory: 1118
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 12.8mm
Length 13.2mm
Height Seated (Max) 0.256 6.50mm
Height 6.2mm
Technical
Series Resistance 4.9Ohm
RMS Current (Irms) 17A
Inductance Tolerance 20%
Current - Saturation 16A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 26MHz
Max DC Current 17A
DC Resistance (DCR) 4.9mOhm
Test Frequency 100kHz
Inductance 3.7μH
Current Rating 17A
Depth 12.8mm
Shielding Shielded
Current Rating (Amps) 17A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 155°C
Resistance 4.9mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.512Lx0.504W 13.00mmx12.80mm
Series WE-HCI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~155°C
Physical
Supplier Device Package 1365
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
