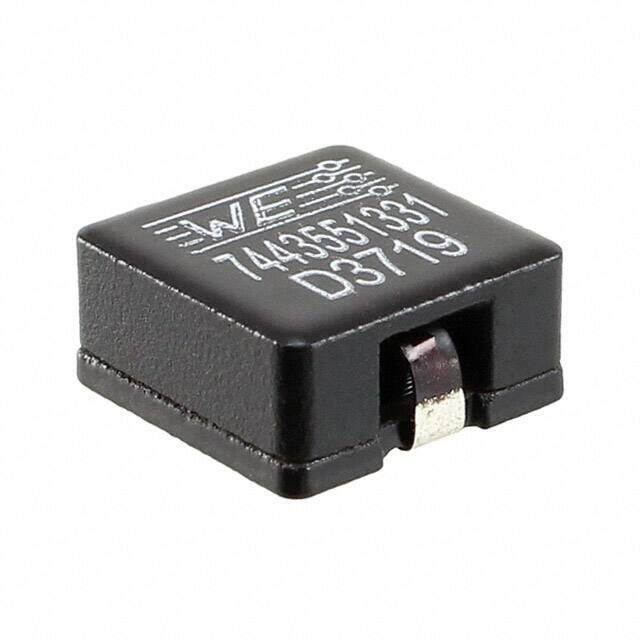

7443551331
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.512Lx0.504W 13.00mmx12.80mm 33muH
PDF
/
Buying Options
Total Price: USD $3.06
Unit Price: USD $3.0624
≥1 USD $3.0624
≥10 USD $3.0008
≥100 USD $2.772
≥500 USD $2.6576
≥1000 USD $2.4816
Inventory: 1105
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 1365
Technical
Operating Temperature -40°C~155°C
Packaging Tape & Reel (TR)
Series WE-HCI
Size / Dimension 0.512Lx0.504W 13.00mmx12.80mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 155°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 5.5A
Shielding Shielded
Current Rating 5.5A
Inductance 33μH
Test Frequency 100kHz
DC Resistance (DCR) 30.5mOhm
Max DC Current 5.5A
Frequency - Self Resonant 11MHz
Inductance Frequency - Test 100kHz
Current - Saturation 5.5A
Inductance Tolerance 20%
RMS Current (Irms) 5.5A
Series Resistance 30.5Ohm
Dimensions
Height 6.2mm
Height Seated (Max) 0.256 6.50mm
Length 13.0048mm
Width 12.8mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings AEC-Q200
