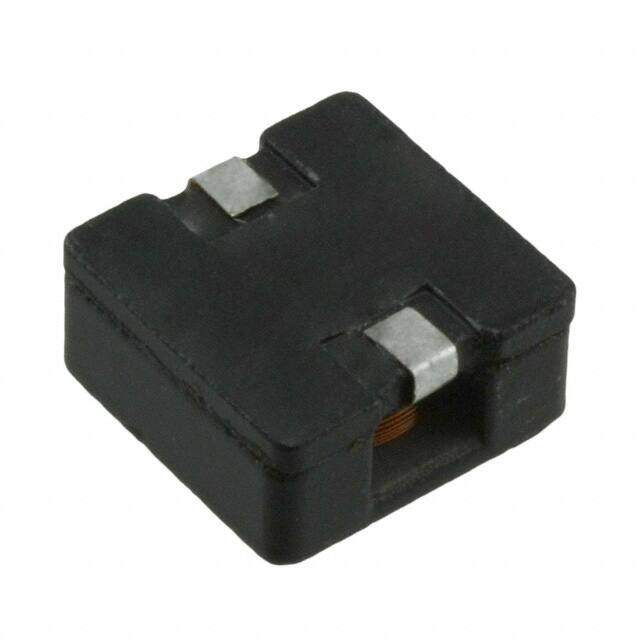

7443551221
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 22UH 6A 24.7 MOHM SMD
PDF
/
Buying Options
Total Price: USD $33.01
Unit Price: USD $33.00965
≥1 USD $33.00965
≥10 USD $27.08545
≥100 USD $26.239
≥500 USD $25.39255
≥1000 USD $24.5461
Inventory: 2748
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 1365
Technical
Operating Temperature -40°C~155°C
Packaging Tape & Reel (TR)
Series WE-HCI
Size / Dimension 0.512Lx0.504W 13.00mmx12.80mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 6A
Shielding Shielded
Inductance 22μH
DC Resistance (DCR) 24.7mOhm
Frequency - Self Resonant 14MHz
Inductance Frequency - Test 100kHz
Current - Saturation 6.5A
Inductance Tolerance 20%
Dimensions
Height Seated (Max) 0.256 6.50mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
