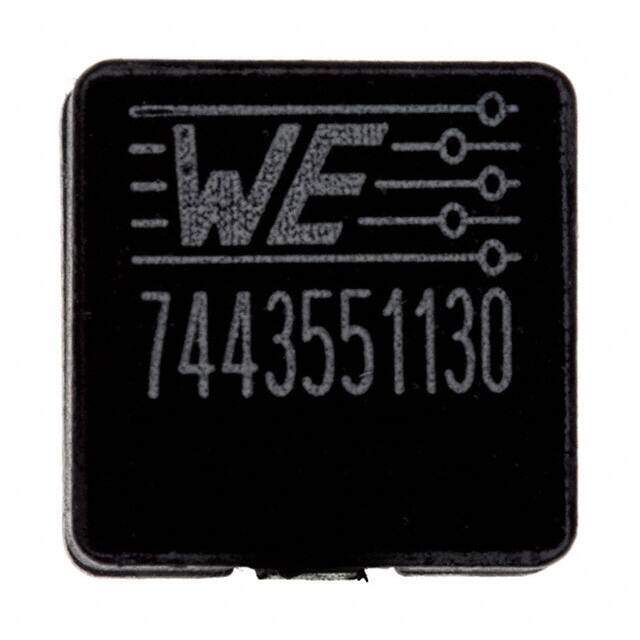

7443551130
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.512Lx0.504W 13.00mmx12.80mm 1.3muH
PDF
/
Buying Options
Total Price: USD $2.57
Unit Price: USD $2.57165
≥1 USD $2.57165
≥10 USD $2.10995
≥100 USD $2.0444
≥500 USD $1.97885
≥1000 USD $1.91235
Inventory: 964
Minimum: 1
-
+
Technical Details
Physical
Supplier Device Package 1365
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Technical
Operating Temperature -40°C~155°C
Packaging Tape & Reel (TR)
Series WE-HCI
Size / Dimension 0.512Lx0.504W 13.00mmx12.80mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 1.8mOhm
Max Operating Temperature 155°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 25A
Shielding Shielded
Current Rating 25A
Inductance 1.3μH
Test Frequency 100kHz
DC Resistance (DCR) 1.8mOhm
Max DC Current 25A
Frequency - Self Resonant 59MHz
Inductance Frequency - Test 100kHz
Current - Saturation 25A
Inductance Tolerance 20%
RMS Current (Irms) 25A
Series Resistance 1.8mOhm
Dimensions
Height 6.2mm
Height Seated (Max) 0.256 6.50mm
Length 13.0048mm
Width 12.8mm
Supply Chain
Factory Lead Time 14 Weeks
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
