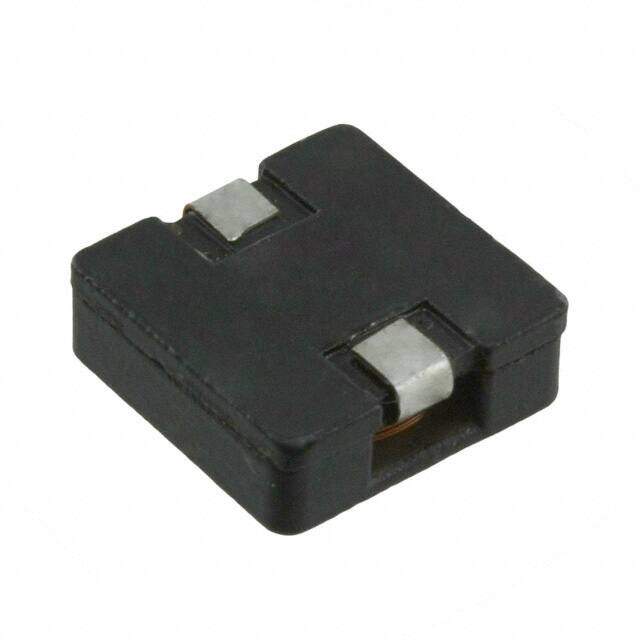

7443550820
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 8.2UH 10A 11.6 MOHM
PDF
/
Buying Options
Total Price: USD $2.42
Unit Price: USD $2.4168
≥1 USD $2.4168
≥10 USD $1.98265
≥100 USD $1.9209
≥500 USD $1.85915
≥1000 USD $1.7974
Inventory: 1138
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 1350
Technical
Operating Temperature -40°C~155°C
Packaging Tape & Reel (TR)
Series WE-HCI
Size / Dimension 0.512Lx0.504W 13.00mmx12.80mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 10A
Shielding Shielded
Current Rating 24A
Inductance 8.2μH
DC Resistance (DCR) 11.6mOhm
Frequency - Self Resonant 20MHz
Inductance Frequency - Test 100kHz
Current - Saturation 11A
Inductance Tolerance 20%
Dimensions
Height Seated (Max) 0.197 5.00mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
