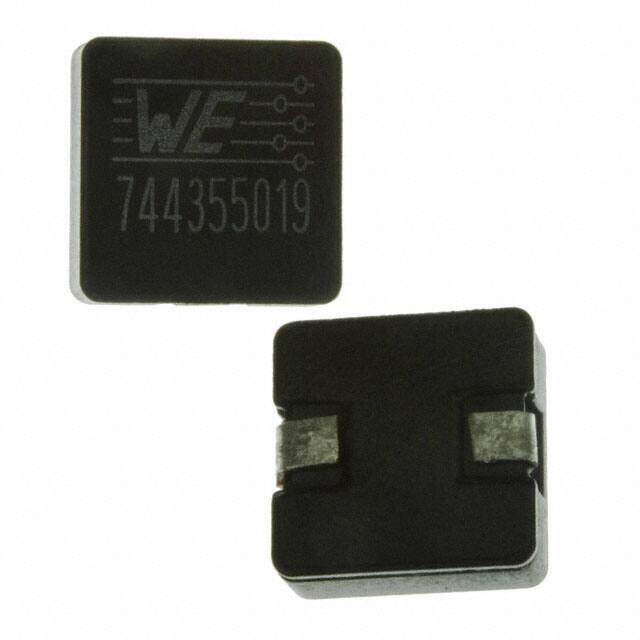

744355019
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.512Lx0.504W 13.00mmx12.80mm 190nH
PDF
/
Buying Options
Total Price: USD $3.06
Unit Price: USD $3.0624
≥1 USD $3.0624
≥10 USD $3.0008
≥100 USD $2.772
≥500 USD $2.6576
≥1000 USD $2.4816
Inventory: 474
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Supplier Device Package 1350
Technical
Operating Temperature -40°C~155°C
Packaging Tape & Reel (TR)
Series WE-HCI
Size / Dimension 0.512Lx0.504W 13.00mmx12.80mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 500μOhm
Max Operating Temperature 155°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 29A
Shielding Shielded
Depth 12.8mm
Current Rating 29A
Inductance 190nH
Test Frequency 100kHz
DC Resistance (DCR) 0.5mOhm
Max DC Current 29A
Frequency - Self Resonant 225MHz
Inductance Frequency - Test 100kHz
Current - Saturation 60A
Inductance Tolerance 20%
RMS Current (Irms) 29A
Series Resistance 500mOhm
Dimensions
Height 4.7mm
Height Seated (Max) 0.197 5.00mm
Length 13mm
Width 12.8mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
